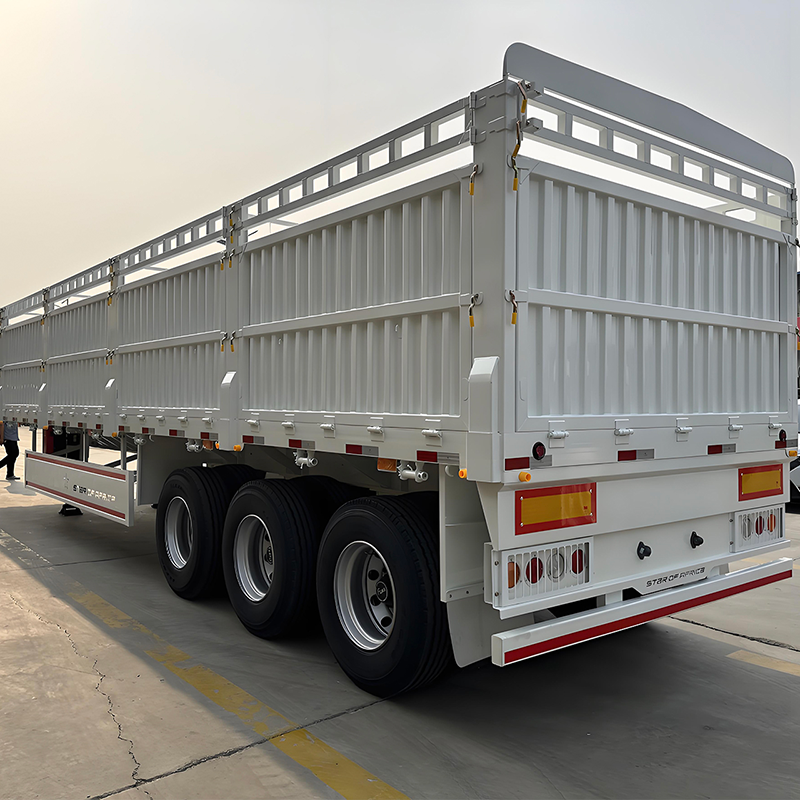

The 3 Axle Livestock Transport Fence Stake Semi Trailer is a heavy-duty trailer crafted for transporting livestock, agricultural produce, and industrial goods across long distances. With a maximum payload capacity of 40–100 tons and a 3-axle configuration (each rated at 13/16 tons), this trailer delivers stability and load-bearing capability, making it ideal for challenging terrains and heavy loads. Its dimensions (12,400x2,500x3,650mm) are fully customizable to accommodate varying cargo sizes and regional regulations, ensuring adaptability to diverse operational needs.
| Quantity: | |
|---|---|
Constructed using Q345B steel for the main frame, a high-strength alloy with a yield strength of 345 MPA, it offers superior durability and resistance to deformation compared to standard Q235 steel. The beam height of 500mm, combined with a 14mm upper plate, 16mm bottom plate, and 8mm middle plate, reinforces the trailer’s structural integrity, while the 3mm diamond-patterned steel floor provides exceptional traction and prevents slippage during transit.
Max Payload | 40-100Tons |
Axles | 3 Axles*13/16Ton |

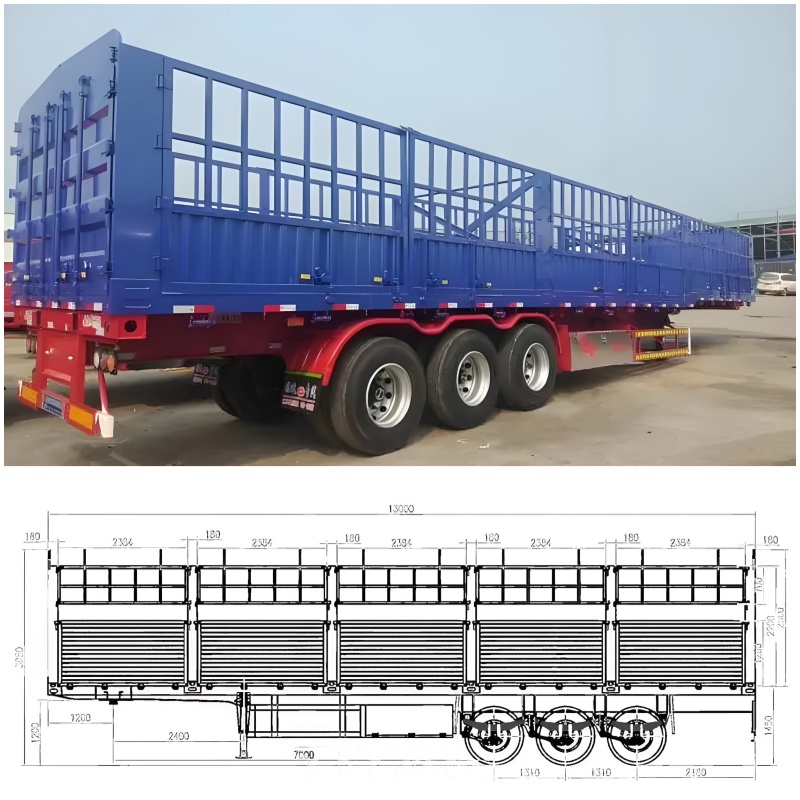

Size | 12400x2500x3650mm (Customized) |
Material | Q345B,Beam Height:500mm,Upper Plate:14mm ,Bottom Plate:16mm,Middle:8mm |
Bottom plate thickness | 3mm diamond plate |
Sidewall Thickness | 1.5mm - 2.5mm Q235 steel (Customizable) |
Side wall height | 600mm (Customizable) |
Fence height | 1000mm (Customizable) |
Braking System | Air Dual braking system |
Suspension | Heavy duty mechanical suspension / Air bag / Bogies |
Q345B Steel Frame: Engineered for high-stress applications, Q345B steel ensures the trailer withstands heavy loads and harsh environmental conditions, reducing maintenance costs and extending service life.
Reinforced Flooring: The 3mm diamond plate floor offers superior grip, protecting livestock from injuries and minimizing cargo shifting during transport. Its robust design also resists corrosion and wear, even after years of use.
Customizable Sidewalls: Choose between 1.5–2.5mm Q235 steel sidewalls (height: 600mm) and a 1,000mm fence height to create a secure enclosure for livestock. The modular design allows easy installation and removal of panels for versatile cargo handling.
Triple Suspension Options:
Heavy-Duty Mechanical Suspension: Ideal for rugged terrains, this system uses leaf springs to absorb shocks and distribute weight evenly, ensuring stability and reducing axle stress.
Airbag Suspension: Provides a smoother ride for sensitive cargo, adjusting automatically to maintain optimal height and balance.
Bogie Suspension: A multi-axle linkage system that enhances maneuverability and load distribution, perfect for heavy-duty applications on uneven roads.
Dual Air Braking System: Equipped with WABCO components (optional), this system ensures rapid, reliable braking even under full load, prioritizing safety and compliance with international standards.
Ventilation and Drainage: Strategically placed vents and drainage channels maintain airflow and prevent moisture buildup, reducing stress and health risks for animals during transit.
Anti-Slip Surfaces: The diamond-patterned floor and textured sidewalls minimize accidents caused by slipping, ensuring livestock remain secure throughout the journey.
Modular Fencing: Removable fence stakes allow easy access for loading/unloading and adaptability to different livestock sizes, from cattle to poultry.
From axle configurations (13/16-ton options) to lighting systems (LED options for visibility) and landing gear (JOST brand for reliability), every aspect of the trailer can be tailored to meet specific operational needs. Clients can also opt for additional features like rubber flooring, interior fans, and upgraded lighting to enhance animal welfare and operational efficiency.
The 3 Axle Livestock Transport Fence Stake Semi Trailer excels in a wide range of industries:
Transporting cattle, sheep, pigs, and poultry across farms, auctions, or slaughterhouses.
Hauling bulk goods like hay, grain, and fertilizers.
Moving machinery, construction materials, and industrial equipment.
Containerized cargo transportation, with compatibility for twist locks and other accessories.
Deploying as a mobile shelter or equipment carrier during disaster relief operations.
With its robust suspension and high ground clearance, the trailer navigates rough terrain common in rural areas and remote locations.
Tailored Solutions: Our team works closely with clients to design trailers that align with their unique requirements, from axle load ratings to regional regulations.
Global Delivery: Efficient shipping to destinations worldwide, supported by a network of trusted logistics partners.
After-Sales Service:
24/7 Technical Support: Prompt assistance for maintenance, repairs, and troubleshooting.
Genuine Spare Parts: High-quality components (e.g., WABCO brakes, JOST landing gear) ensure seamless replacements and minimal downtime.
Certifications: Compliance with international standards (e.g., ISO, SGS) guarantees reliability and safety.
Training and Consultation: Expert guidance on trailer operation, maintenance, and optimization for maximum efficiency.
