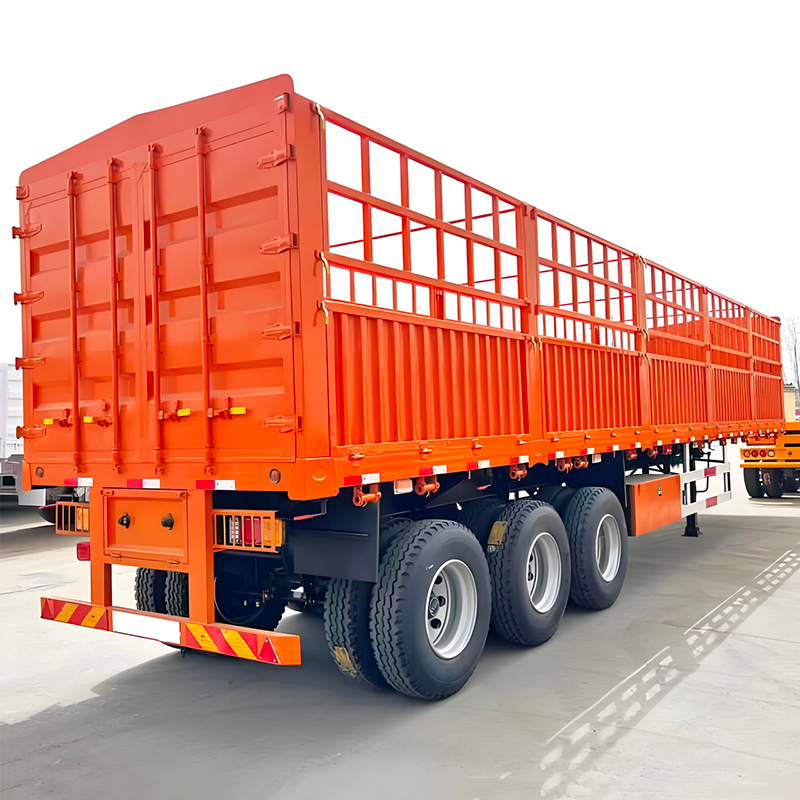

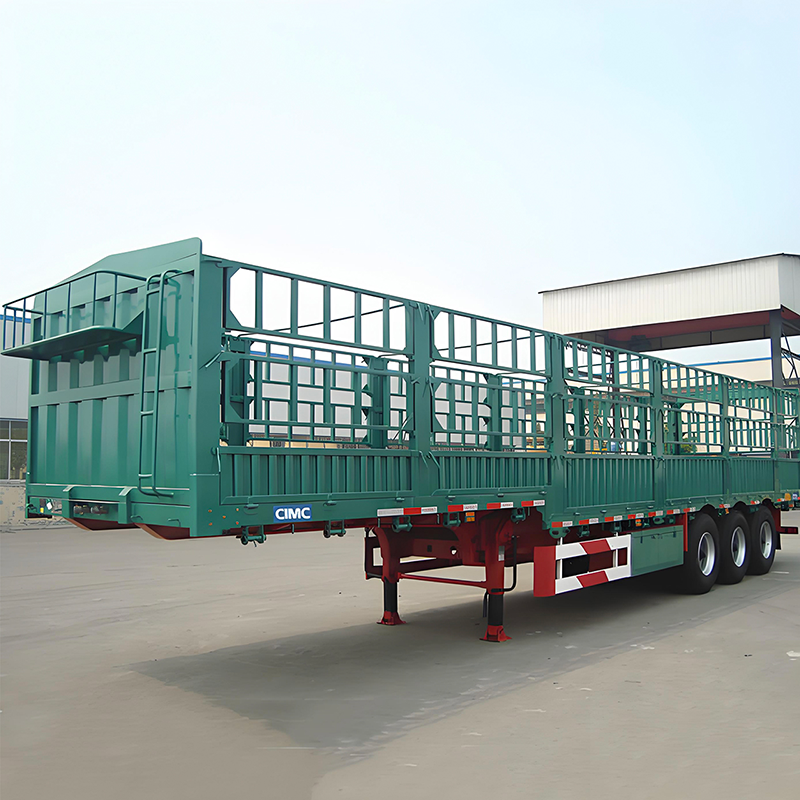

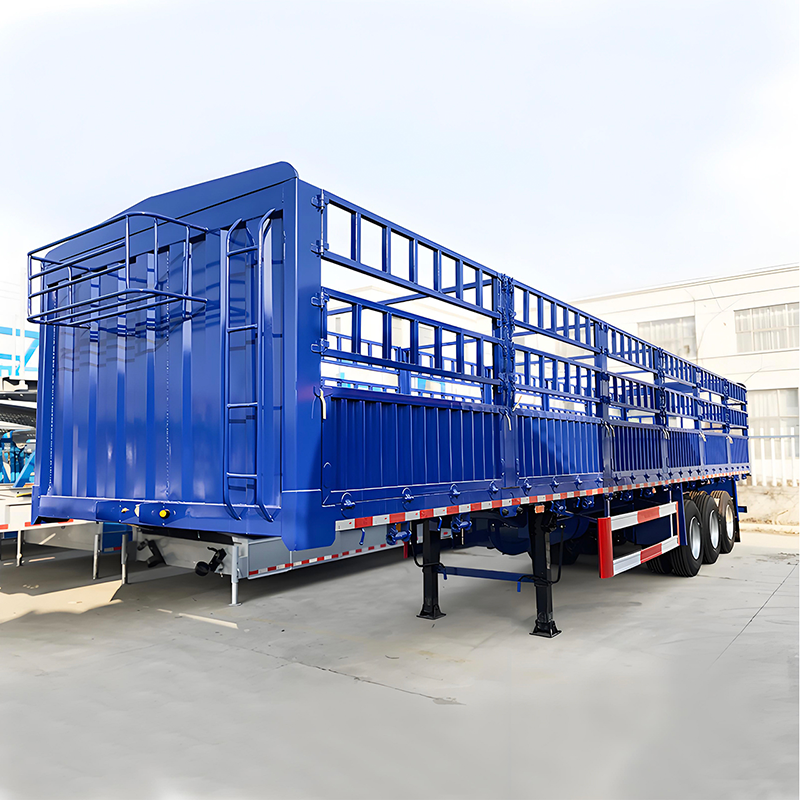

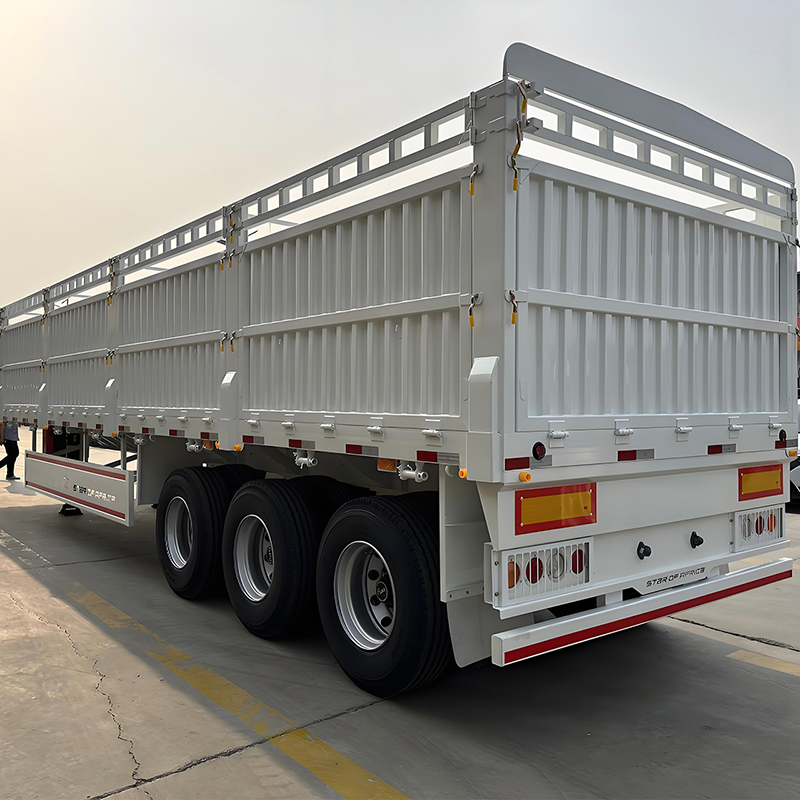

The Fence Cargo Semi Trailer is a type of semi trailer characterized by its surrounding fence structure, which is used to contain and secure cargo during transportation. It is commonly used for transporting bulk goods, such as agricultural products, construction materials, and light industrial goods. The fence can be made of steel pipes or panels, providing a barrier to prevent cargo from falling off the trailer while still allowing for ventilation. This semi trailer is towed by a tractor unit and is widely used in short and medium-distance transportation, as well as in rural and urban logistics. Its design prioritizes practicality, with features that facilitate easy loading and unloading of cargo.
Semi Trailer Type | Fence Cargo full trailer |
Max Payload | 40-100Tons |
Axles | 3 Axles*13/16Ton,FUWA/BPW or Customization |
Fence semi trailer size | 12400x2500x3650mm (Customized) |
Material | Q345B,Beam Height:500mm,Upper Plate:14mm ,Bottom Plate:16mm,Middle:8mm |
Bottom plate thickness | 3mm diamond plate |
Sidewall Thickness | 1.5mm - 2.5mm Q235 steel (Customizable) |
Side wall height | 600mm (Customizable) |
Fence height | 1000mm (Customizable) |
Braking System | Air Dual braking system,with relay valve |
Suspension | Heavy duty mechanical suspension / Air bag / Bogies |
Landing gear | 28 Tons Two Speed,JOST/Other Brand |
Fence Structure: The fence is typically made of high-strength steel, with vertical and horizontal bars or panels forming a secure enclosure around the trailer bed. The height of the fence can vary, usually ranging from 1.5 to 2.5 meters.
Open Top Design: The trailer has an open top, allowing for easy loading of cargo from above using cranes or forklifts, which is convenient for bulk goods.
Removable or Foldable Fences: Some models have fences that can be removed or folded down, providing flexibility for loading larger items that may exceed the height of the fence.
Sturdy Trailer Bed: The bed of the trailer is made of thick steel plates, which are strong enough to support the weight of the cargo and resist deformation.
Multiple Axles: Depending on the load capacity, the trailer may have two, three, or more axles, ensuring even weight distribution and stability during transportation.
Lightweight Construction: Despite the sturdy fence and bed, the trailer is designed to be relatively lightweight to maximize the payload capacity.
Secure Cargo Containment: The fence structure effectively keeps cargo within the trailer, preventing it from falling off during transit, even when traveling on bumpy roads or around corners.
Easy Loading and Unloading: The open top and, in some cases, removable/foldable fences make it easy to load and unload cargo, whether using manual labor or mechanical equipment.
Ventilation for Cargo: The open design of the fence allows for air circulation, which is beneficial for transporting agricultural products and other goods that require ventilation to prevent spoilage.
Versatility in Cargo Types: Can transport a wide variety of bulk and irregularly shaped goods, adapting to the needs of different industries such as agriculture, construction, and retail.
Cost-Effective Transportation: The simple design and relatively low manufacturing cost make the Fence Cargo Semi Trailer an affordable option for businesses with cargo transportation needs, especially for medium and light loads.
Q: What is the maximum weight that the Fence Cargo Semi Trailer can carry?
A: The maximum weight capacity depends on the number of axles and the design of the trailer, generally ranging from 20 to 40 tons.
Q: Can the fence be adjusted to different heights?
A: Some models may have adjustable fence heights, allowing for customization based on the height of the cargo being transported.
Q: How is the fence maintained to prevent rust?
A: Regular cleaning and painting of the steel fence can help prevent rust. It is also important to check for any damage to the fence and repair it promptly to avoid further corrosion.
Q: Is the trailer suitable for transporting fragile goods?
A: While the fence provides containment, the open top and potential for cargo movement may not make it ideal for highly fragile goods. Additional padding or securing measures may be needed for such items.
Q: What is the length of the Fence Cargo Semi Trailer?
A: The length varies, but common lengths are between 8 and 13 meters, depending on the intended use and local transportation regulations.
