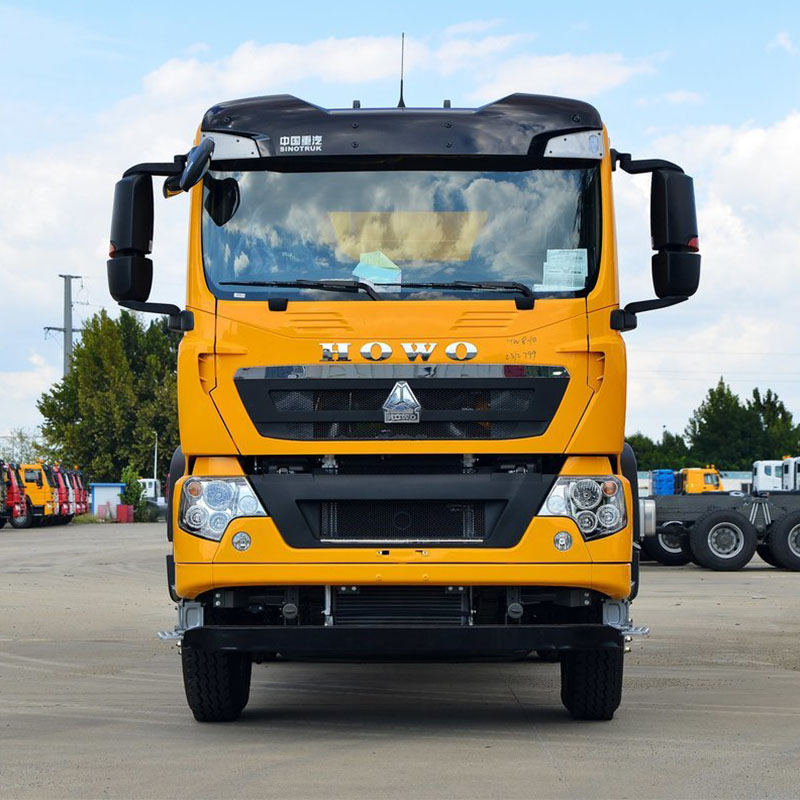

The HOWO TX 350-430HP 6x4 Dump Truck is a robust chassis cab platform designed as the prime mover for heavy-duty dump truck operations. Built on SINOTRUK's proven TX platform, it features a 6x4 drivetrain (three axles, rear two driven) for excellent traction under load. Powered by efficient Euro III/V compliant diesel engines ranging from 350 to 430 horsepower, this truck offers a balance of power, durability, and value, making it a common sight in construction, mining, and infrastructure development projects globally for hauling materials with dump trailers or bodies.
Truck Model | ZZ3257V434GF1 |
Driving Style | Left Hand Driving |
Engine | Weichai WP10H400E62 |
Transmission | HW19712CL |
Dimension(Lx W x H)(unloaded)(mm) | 9320x2350x1500mm |
Cargo body size (L*W*H, mm) (mm) | 6300x2300x1500mm |
Lift type of Carriage | Middle lifting system |
Wheel base (mm) | 4325+1350mm |
Max speed(km/h) | 78 |
Curb weight(kg) | 12500 |
Loading Weight(kg) | 25,000 |
Fuel tanker capacity(L) | 300 |
Reliable Powertrain: Equipped with robust SINOTRUK or licensed WEICHAI engines (e.g., WD615 series variants) offering 350HP, 380HP, or 430HP options, coupled with a manual transmission (typically 9-speed or 10-speed) featuring a crawler gear for low-speed maneuvering under heavy loads.
Durable 6x4 Chassis: Features a strong ladder frame chassis constructed from high-strength steel, designed to handle the stresses of rough terrain and heavy payloads. The 6x4 configuration provides superior drive traction compared to 4x2 models.
Heavy-Duty Suspension: Utilizes robust multi-leaf parabolic spring suspension on the front and rear drive axles, designed for high load capacity and resilience in challenging off-road conditions.
Functional Cab: Offers a day cab or sleeper cab configuration with a focus on driver ergonomics and essential controls. Includes features like tiltable steering, clear instrumentation, and a practical layout for daily operation.
Hydraulic Power Take-Off (PTO): Integrated PTO connection point to power the hydraulic pump for operating a dump body or trailer's tipping mechanism.
Proven Cost-Effectiveness: Offers a competitive acquisition cost and favorable total cost of ownership due to durable components, widespread parts availability, and established service networks in many markets.
Strong Towing & Payload Capacity: The 6x4 drivetrain and robust chassis provide high Gross Combination Weight (GCW) and Gross Vehicle Weight (GVW) ratings, enabling substantial payloads when coupled with appropriate dump bodies or trailers.
Off-Road Capability: High ground clearance, a sturdy chassis, and the traction advantage of the 6x4 drivetrain make it capable of operating effectively on unprepared construction sites and rough haul roads.
Mechanical Simplicity: Relatively straightforward mechanical design facilitates easier maintenance and repair in varied operating environments, potentially reducing downtime.
Global Parts & Service Support: SINOTRUK's extensive international presence ensures reasonable access to spare parts and technical support in numerous countries.
