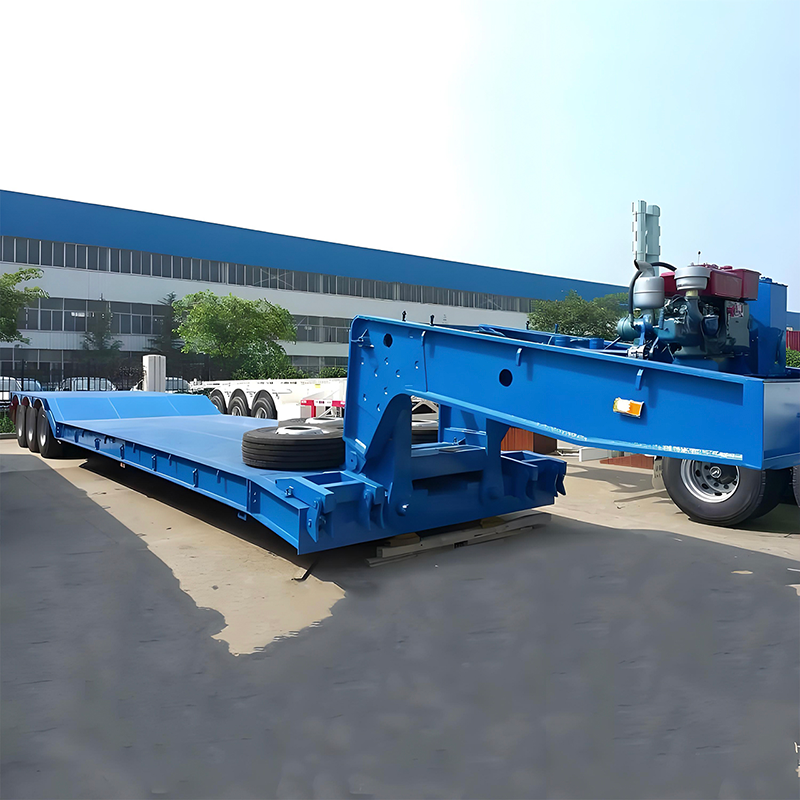

Removable semi trailer is designed with a detachable gooseneck feature, which means the front part of the trailer gooseneck can be disconnected from the main body.Commonly used to transport heavy equipment such as bulldozers, excavators, and other large machinery.
The structure of Detachable Low bed Trailer
Chassis material adopt High-strength steel, reinforced cross members and side rails for stability and resistance to flexing.
Equipped with an advanced suspension system, which improves stability and enables the trailer to carry heavy loads safely.
Equipped with 12KW diesel engine with hydraulic system station
The side beam is designed in an "H" shape and welded with HG 60 steel. Its bearing capacity is twice that of other steels.
Technical Specification
Axles | 3 Axles*13Ton,FUWA/BPW or Customization |
Loading Capacity | 50-100 Tons |
Low bed Trailer Size | 16000x2550x1700mm |
Chassis | Heavy Duty and Extra Durability Designed I Beam; High Tensile Steel T700; Top Flange 20mm, Width 140mm; Middle Flange 11.5mm; Bottom Flange 20mm, Width 140mm. |
Gooseneck | Removable gooseneck |
Floor | 3~8mm Checker Plate. |
Hydraulic cylinder | 12KW diesel engine with hydraulic station |
Braking System | Air Dual braking system,with relay valve |
Detachable Gooseneck Lowboy Semi Trailer Features
Adopt lightweight design, reduce the weight while still able to ensure the strength.
Heavy-duty landing gear,reinforced landing gear systems designed to handle significantly greater weight and stress.
The deck of lowboy semi trailer is set low to the ground, which lowers the center of gravity and improves stability.
Truck lowbed trailer main beam's construction from high tensile strength steel plate ensures excellent bearing capacity and long service life.
The high-strength, wear-resistant load-bearing ramp facilitates the repeated loading and unloading of heavy equipment without deformation or breakage.
