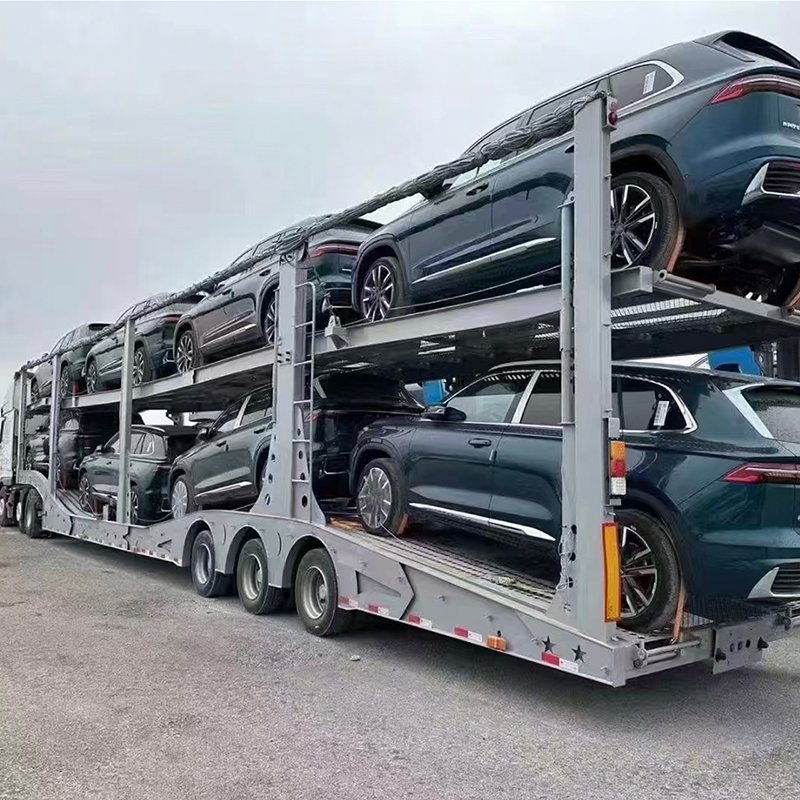

2 Axle Double Deck Car Carrier Trailer
Designed to carry seven cars simultaneously using two decks, maximizing space and efficiency. commonly used by automotive manufacturers, dealerships, and logistics companies for vehicle transportation
1.Can carries 5–9 vehicles depending on their size and weight..Suitable for sedans, SUVs, and small trucks.
2.With two decks Design:
Upper Deck: Adjustable height to accommodate taller vehicles.
Lower Deck: Fixed or adjustable platform for added flexibility.
3. Use hydraulic lifting device to adjust the deck
Technical Specification
Axles | 2 /3 Axles*13Ton |
Stand Column | Bending Plat, 5mm |
Brake Chamber | 4 Double |
Size | 13750*2550*4000 mm |
Main Bream | Height: 300mm,Top Flange: 10mm,Under Flange: 10mm, |
Floor | The First and Second Floor Runway Is Paved With Anti-Skid Plate |
Draw Plate | Thickness: 14mm, Dovetailed Type |
Two-Story Beam | 8mm / 8mm / 6mm |
Braking System | Air Dual braking system,with relay valve |
1. Higher Bearing Capacity and Longevity: The use of high-strength steel plate provides the springboard with a robust structure capable of handling heavier loads. This durability translates into a longer service life, reducing the need for frequent replacements and thereby lowering long-term costs.
2. Efficient and Quick Operation: The lightweight nature of high-strength steel allows for easy handling, enabling one-person operation. This facilitates a quicker loading process, enhancing overall work efficiency and reducing labor costs. The ability to complete loading tasks in as little as 25 minutes highlights its time-saving potential.
