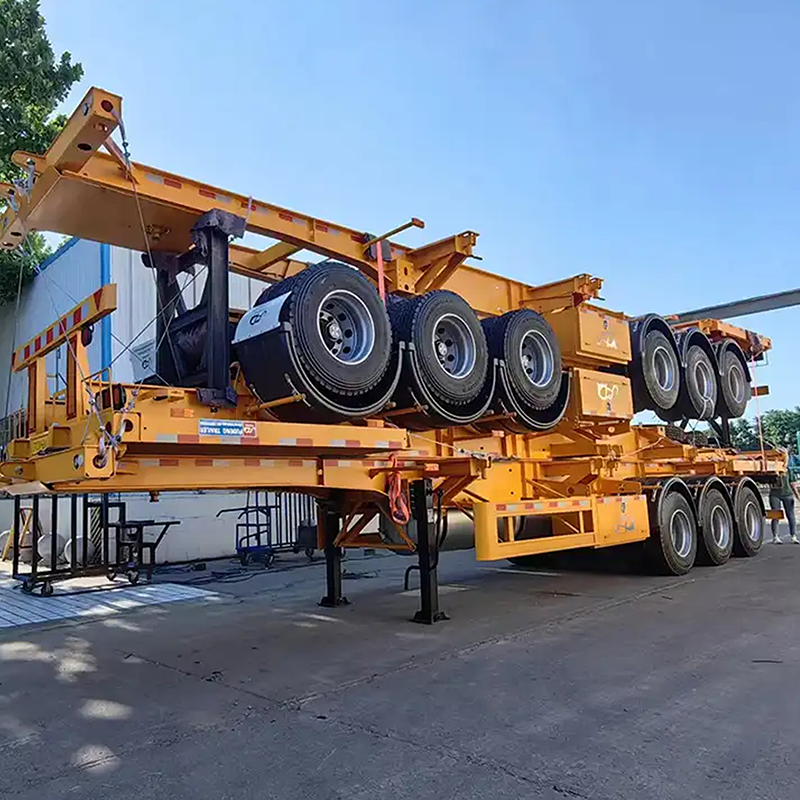

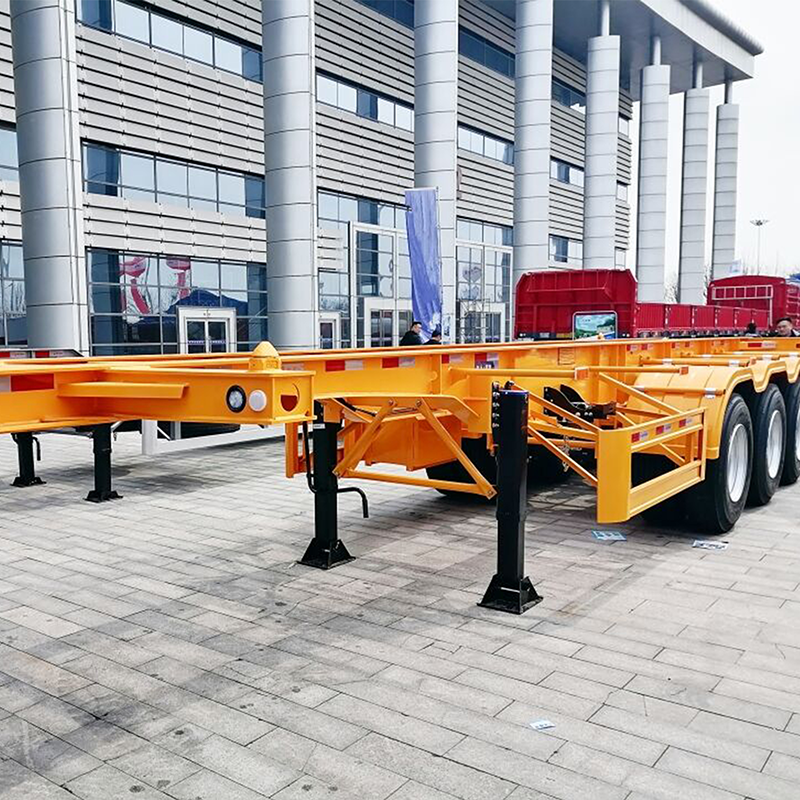

20ft 40ft Terminal Container Chassis Semi Trailer
Container Chassis Trailer are used for the transportation of various containers like 20ft,40ft,48ft or 53ft from trucks between terminals,warehouse and ports.Container Chassis consists of a steel frame with tires and axle systems,suspension,brakes,lighting devices and so on,with reasonable and durable structure, reliable operation, and beautiful appearance.

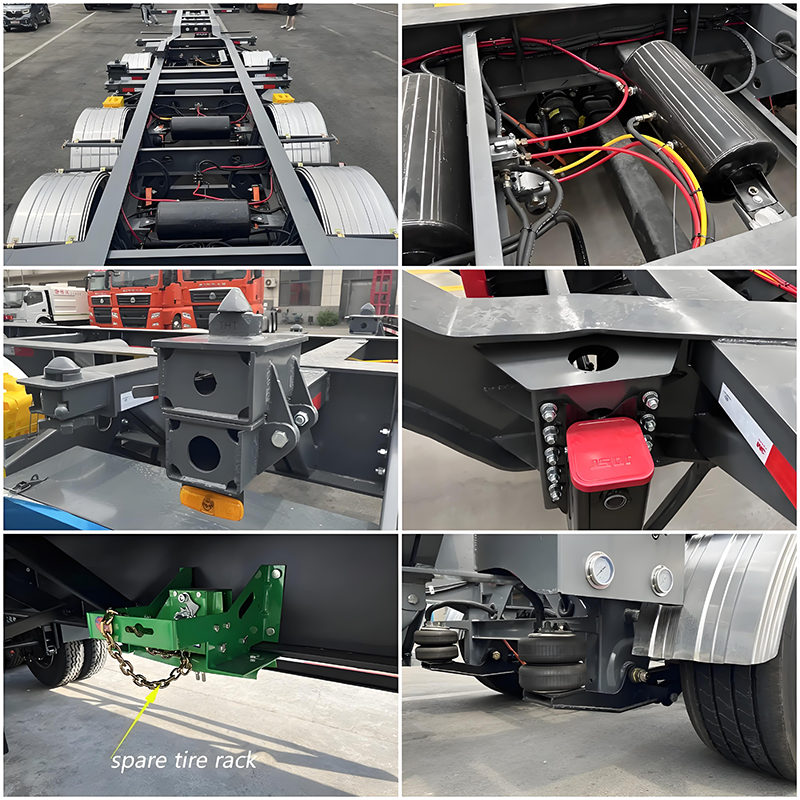

The structure of Container Chassis Trailer
Adopt high strength steel for the main bream to provide high bearing capacity,durability and strength.
Adopt dual air braking system with great breaking efficiency and short breaking distance.
Chassis semi trailer landing gear has a pin and latch mechanism.It prevents the legs from unintentionally collapsing or retracting while the trailer is stationary.
Spring suspensions are used to help in stabilizing the load and absorbing shocks, protecting both the cargo and trailer.

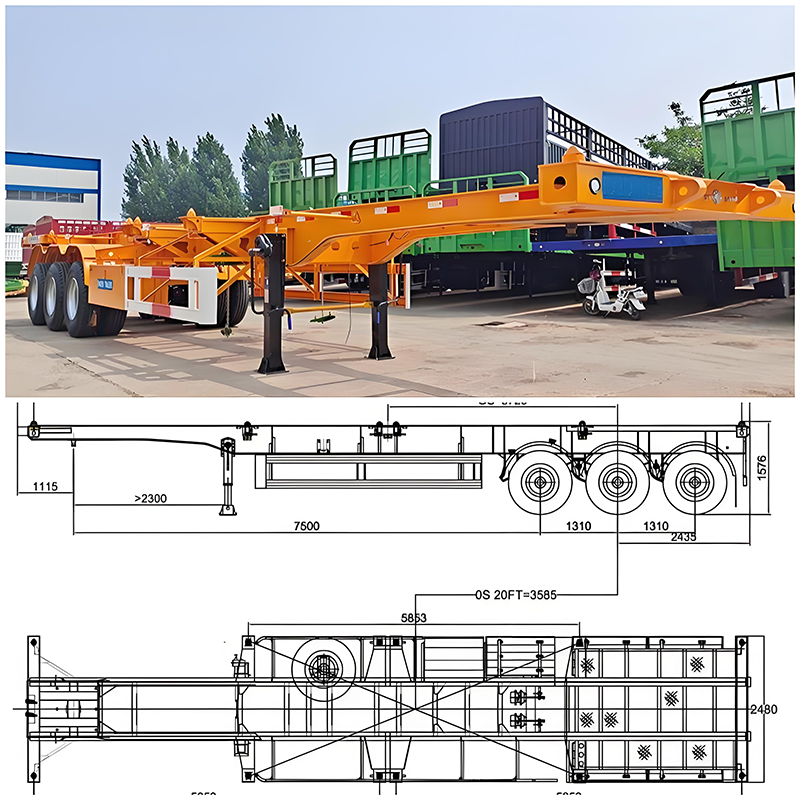

Technical Specification
Axles | 2 /3 Axles*13Ton,FUWA/BPW or Customization |
Loading Capacity | 30-80 Tons |
Container Chassis size | 12400* 2500*1570mm |
Material | Q345B,Beam Height:500mm,Upper Plate:14mm ,Bottom Plate:16mm,Middle:6mm |
Twist Lock | 8-12 Sets of 20/40ft container |
Braking System | Air Dual braking system |
Suspension | Reinforced mechanical Suspension |
Landing gear | 28 Tons Two Speed |
Container Chassis Trailer Features
Adopt Baosteel high-strength steel, improve the rigidity and stability.
Using electrophoretic and sandblasting technology, extend the service life.
Has complete side lights and ceiling lights, and the body is eye-catching at night to ensure safer driving.
Equipped with high-strength, wear-resistant tires, these trailers are designed for long-distance travel.

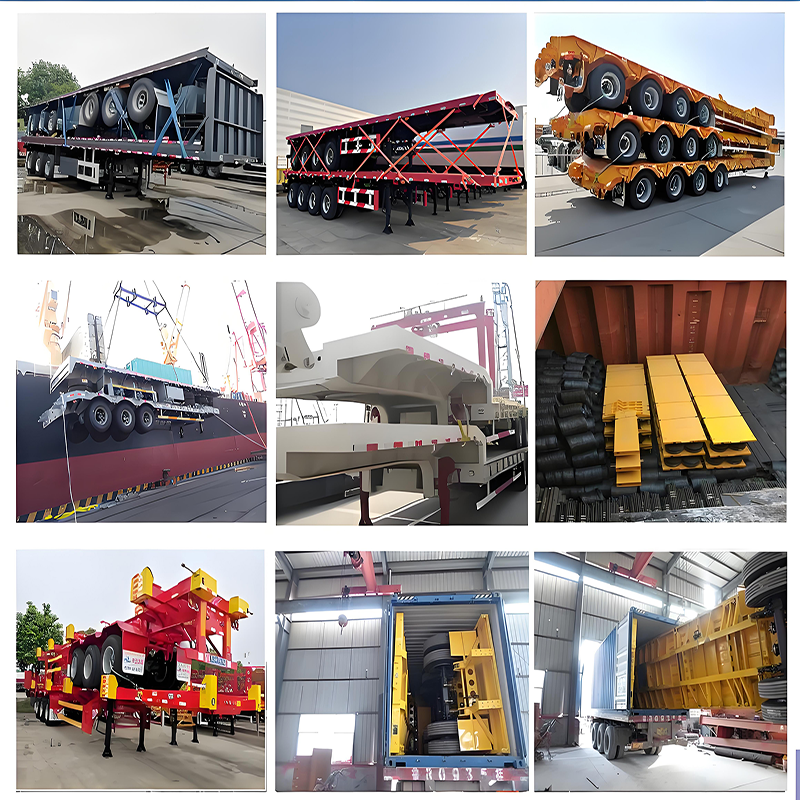

Shipping
