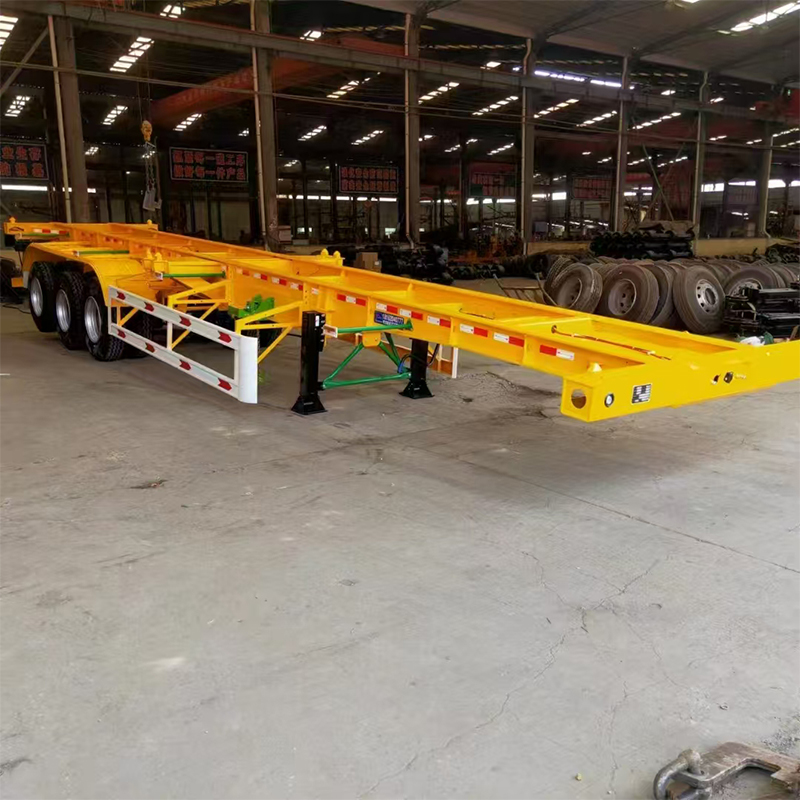

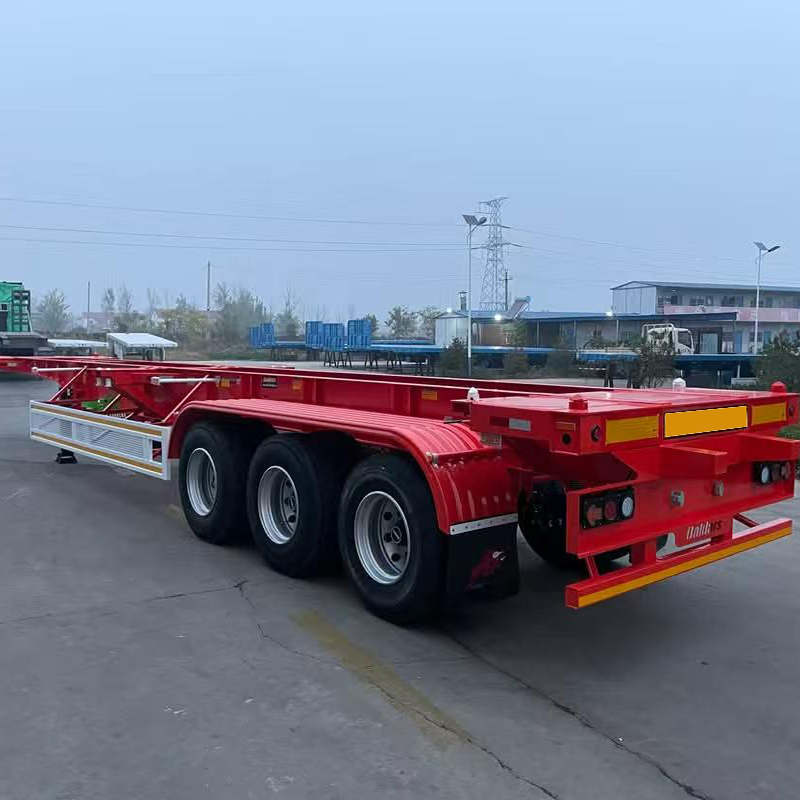

3 Axle 40FT Container Skeletal Truck Semi Trailer
Skeleton truck trailer are used specifically for transporting shipping containers. The skeletal design, meaning it consists of a basic, open frame structure without a full body or sides, designed to carry containers securely.the open-frame design that provides a lightweight structure.we can providing multiple size options, such as 20ft, 40ft, 45ft, and 48ft skeleton semi trailers, ensures that customers can find the right solution for their specific requirements.
1. Skeleton truck trailer including main bream,cross bream,side bream,Bottom Platform,other reinforced plate and so on,adopt high strength steel to make sure the bearing capacity
2. Adopt dual air braking system includes brake chambers,discs, and other components to provide stopping power.
3. Landing gear are telescoping,ensure the trailer remains level, stable, and secure when not connected to the tractor.
4. Hight strength axles to supporting the weight of the container and distributing it evenly across the trailer.
Technical Specification
Axles | 2 /3 Axles*13Ton,FUWA/BPW or Customization |
Loading Capacity | 30-80 Tons |
Size | 12400* 2500*1570mm |
Material | Q345B,Beam Height:500mm,Upper Plate:14mm ,Bottom Plate:16mm,Middle:6mm |
Twist Lock | 12 Sets of 40ft container |
Braking System | Air Dual braking system |
Suspension | Reinforced mechanical Suspension |
Landing gear | 28 Tons Two Speed |
1.Designed much more safely and durability under a variety of conditions, such as rough roads
2. Braking system is designed for maximum safety, control, and reliability.with stop efficiently and safely under various conditions.
3. Heavy-duty landing gear designed to handle significantly greater weight and stress.
4. Skeletal trailer will go through strict tests and pressure-bearing performance inspections before leaving the factory.
Shipping
3 Axle 40FT Container Skeletal Truck Semi Trailer
Skeleton truck trailer are used specifically for transporting shipping containers. The skeletal design, meaning it consists of a basic, open frame structure without a full body or sides, designed to carry containers securely.the open-frame design that provides a lightweight structure.we can providing multiple size options, such as 20ft, 40ft, 45ft, and 48ft skeleton semi trailers, ensures that customers can find the right solution for their specific requirements.
1. Skeleton truck trailer including main bream,cross bream,side bream,Bottom Platform,other reinforced plate and so on,adopt high strength steel to make sure the bearing capacity
2. Adopt dual air braking system includes brake chambers,discs, and other components to provide stopping power.
3. Landing gear are telescoping,ensure the trailer remains level, stable, and secure when not connected to the tractor.
4. Hight strength axles to supporting the weight of the container and distributing it evenly across the trailer.
Technical Specification
Axles | 2 /3 Axles*13Ton,FUWA/BPW or Customization |
Loading Capacity | 30-80 Tons |
Size | 12400* 2500*1570mm |
Material | Q345B,Beam Height:500mm,Upper Plate:14mm ,Bottom Plate:16mm,Middle:6mm |
Twist Lock | 12 Sets of 40ft container |
Braking System | Air Dual braking system |
Suspension | Reinforced mechanical Suspension |
Landing gear | 28 Tons Two Speed |
1.Designed much more safely and durability under a variety of conditions, such as rough roads
2. Braking system is designed for maximum safety, control, and reliability.with stop efficiently and safely under various conditions.
3. Heavy-duty landing gear designed to handle significantly greater weight and stress.
4. Skeletal trailer will go through strict tests and pressure-bearing performance inspections before leaving the factory.
