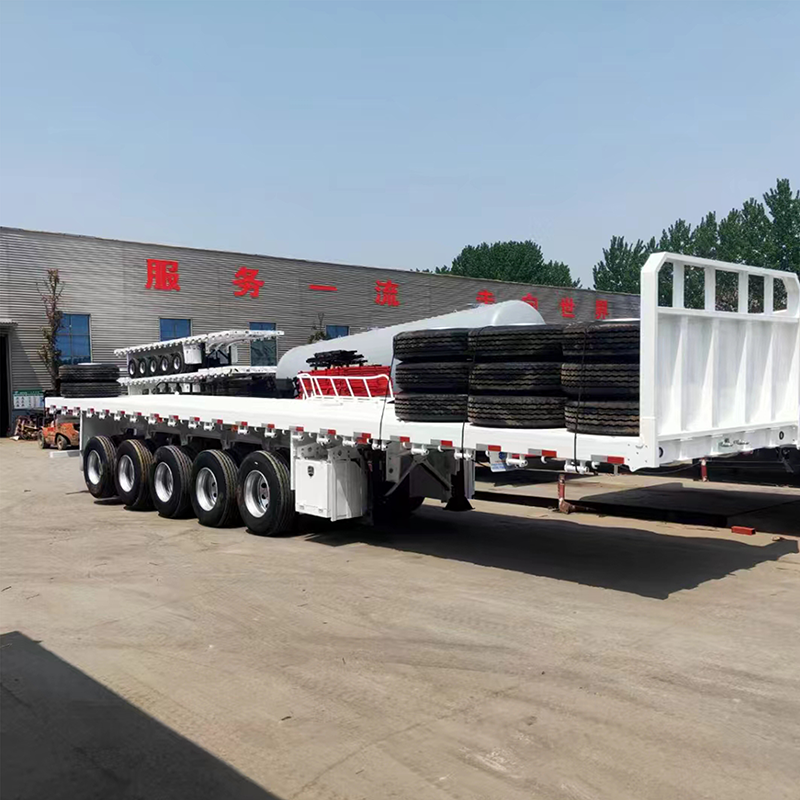

The Four Axle 40ft Flatbed Container Semi Trailer is a heavy-duty transportation vehicle designed specifically for carrying 40-foot shipping containers. As the name suggests, it features four axles, which provide enhanced load-bearing capacity and stability, making it suitable for heavy container loads. The flatbed design offers an open platform, allowing for easy loading and unloading of containers using cranes or forklifts. This type of semi trailer is commonly used in intermodal transportation, connecting ports, rail yards, and warehouses. It is built to withstand the demands of heavy cargo and long-distance transportation, ensuring reliable performance in various operating conditions.
Axles | 3/4 Axles*13Ton,FUWA/BPW or Customization |
Loading Capacity | 30-100 Tons |
Flatbed Truck Trailer size | 13950*2500*1600mm |
Material | Q345B,Beam Height:500mm,Upper Plate:14mm ,Bottom Plate:16mm,Middle:8mm |
Twist Lock | 12 Sets of 40ft container |
King Pin | 50#(2")/90#(3.5") JOST/Other Brand |
Braking System | Air Dual braking system,with relay valve |
Suspension | Reinforced mechanical Suspension,90mm*13mm*10 layers |
Landing gear | 28 Tons Two Speed,JOST/Other Brand |
Tire | 12R22.5 (12/16 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/Other |
Four Axle Configuration: The four axles distribute the weight of the container evenly, reducing the pressure on each axle and improving the trailer's ability to carry heavy loads.
Flatbed Platform: The flat, open platform provides a large surface area for placing the 40-foot container, with no sides or roof to obstruct loading and unloading.
Container Locking Devices: Equipped with twist locks at specific positions to securely fasten the 40-foot container to the flatbed, preventing movement during transportation.
High-Strength Frame: The trailer frame is constructed from high-strength steel, ensuring rigidity and durability to handle the weight of the container and resist bending or deformation.
Suspension System: Features a robust suspension system, often air suspension or mechanical suspension, which absorbs road shocks and provides a smooth ride, protecting both the trailer and the cargo.
Lightweight Design: Despite its strength, the trailer is designed to be as lightweight as possible to maximize the payload capacity when combined with the tractor unit.
Increased Load Capacity: The four axles allow the trailer to carry heavier 40-foot containers compared to trailers with fewer axles, making it suitable for heavy cargo.
Easy Loading and Unloading: The flatbed design enables quick and efficient loading and unloading of containers using standard lifting equipment, saving time and labor.
Enhanced Stability: The four axles and proper weight distribution contribute to better stability during transportation, reducing the risk of tipping or swaying, especially when navigating curves or uneven roads.
Versatility: While primarily designed for 40-foot containers, it can also be used to transport other large, heavy items that fit on the flatbed, providing some flexibility in cargo transportation.
Durability and Longevity: The high-strength steel frame and quality components ensure a long service life, even with frequent use in harsh environments.
