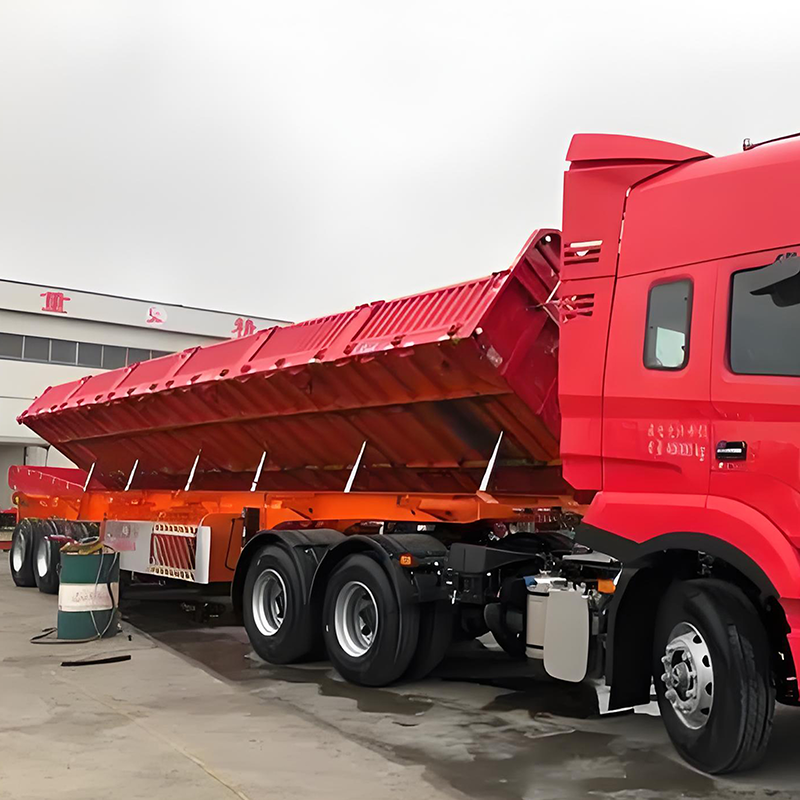

The Heavy Duty Hydraulic Side Dump Semi Trailer is a specialized solution designed for rapid unloading of free-flowing bulk materials directly to the side of the trailer. It features a robust chassis supporting a cargo body that pivots laterally using powerful hydraulic cylinders. This mechanism allows the entire load to be discharged quickly and efficiently along the length of the trailer, creating a windrow. Its primary applications include hauling aggregates (gravel, sand, crushed rock), grain, coal, salt, and similar materials in road construction, agriculture, mining, and bulk material handling where precise longitudinal placement is beneficial.
Bucket capacity | 20-50 cubic meters |
Axles | 3 Axles*13/16Ton,FUWA/BPW or Customization |
Lifting system | 130 Hydraulic Lifting Cylinder |
Dump semi trailer size | 13000*2550*2900mm |
Dump Box | T700 / Q345B double plate |
Material | Q345B,Beam Height:500mm,Upper Plate:14mm ,Bottom Plate:16mm,Middle:8mm |
Bottom plate thickness | 2mm zinc-rion alloy plate or 3mm plain plate (Customizable) |
Sidewall Thickness | 1.5mm - 2.5mm Q235 steel (customizable) |
Braking System | Air Dual braking system,with relay valve |
Suspension | Heavy duty mechanical suspension |
Landing gear | 28 Tons Two Speed |
High-Strength Tipping Mechanism: Incorporates multiple large-bore hydraulic cylinders mounted longitudinally, engineered to provide the synchronized force required to tilt the entire loaded body smoothly and reliably.
Reinforced Chassis & Hinges: Built with a reinforced main frame and exceptionally strong, oversized hinge assemblies designed to withstand the significant torsional forces generated during the side dumping process.
Durable Body Construction: The body is typically fabricated from high-strength steel, often incorporating wear-resistant liners (e.g., abrasion-resistant steel plate) in high-impact areas to extend service life when handling abrasive materials.
Stability Control System: Features a hydraulic locking system that secures the body firmly to the chassis frame during transit and releases it only during controlled tipping, ensuring stability. Some models include hydraulic outrigger legs for additional support on uneven ground.
Multiple Axle Configurations: Available with tandem, tridem, or quad axle setups to accommodate varying payload requirements and regional weight distribution regulations.
Unmatched Unloading Speed: Side dumping allows the entire payload to be discharged in under a minute, significantly faster than rear-dump or live-bottom alternatives, drastically improving fleet productivity.
Precision Material Placement: Enables the creation of a controlled, longitudinal windrow of material alongside the trailer, minimizing the need for subsequent spreading equipment in applications like road base or shoulder construction.
Operational Flexibility: Can unload while moving slowly ("on the go") or while stationary, providing flexibility depending on site requirements and conditions. Requires only sufficient lateral clearance.
Reduced Material Segregation: The rapid, lateral unloading motion minimizes the separation of finer and coarser particles that can occur with other dumping methods, ensuring a more consistent material mix.
High Payload Efficiency: The design maximizes cubic capacity within legal dimensions, optimizing the volume of material transported per trip.
