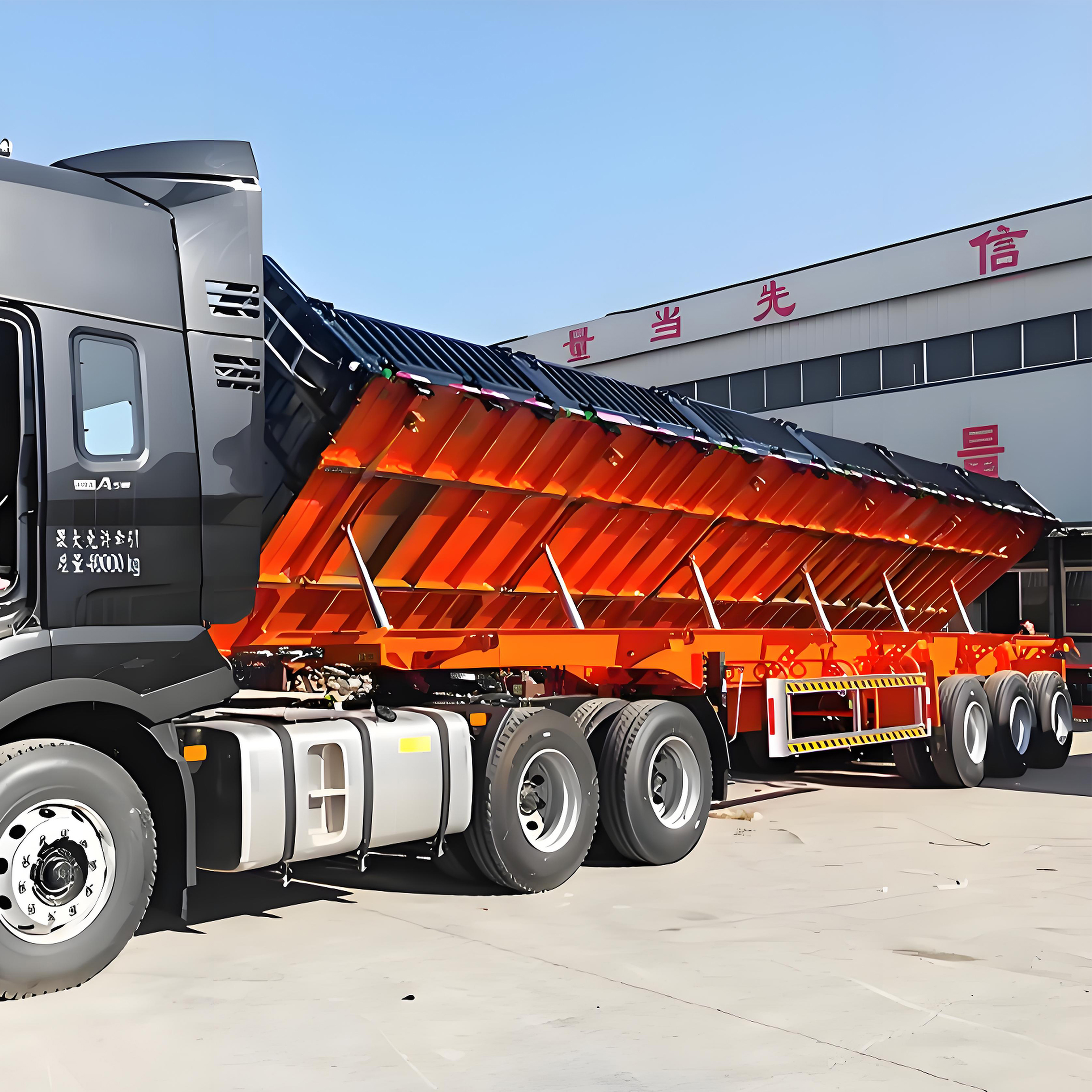

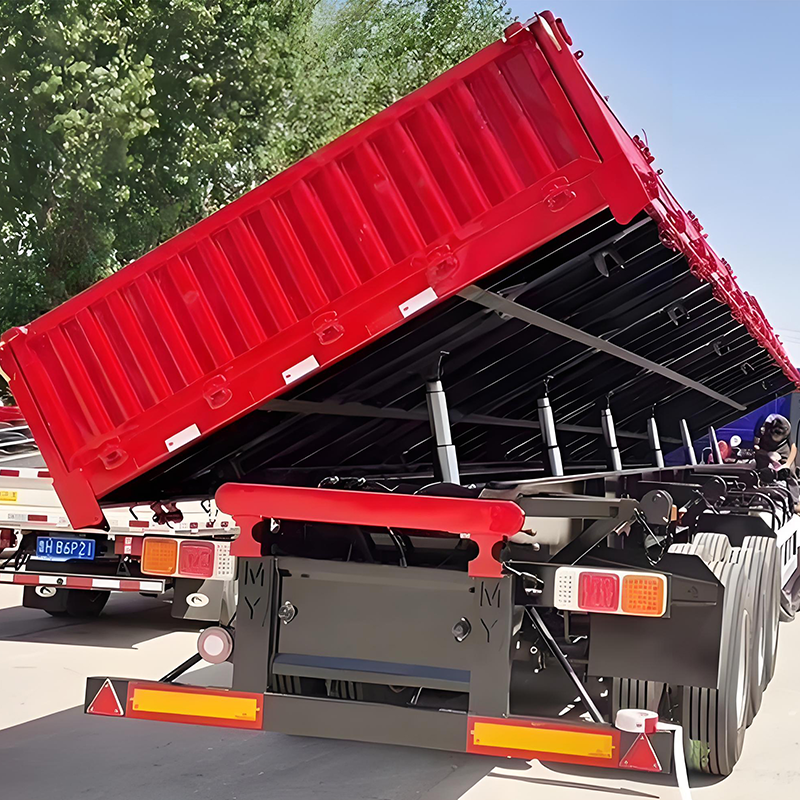

3 Axle Dropside Side Tipper Trailer
Designed to transport materials like sand,coal, and construction debris. suitable for the industry link mining, construction, and agriculture,This allows for faster and more efficient unloading, especially in tight spaces or when working in areas where a rear dump wouldn't be practical.
Our 80 ton side tipper semi tipper trailers are extremely popular and highly recommended by customers in markets across Africa, the Middle East, and Southeast Asia. We take pride in providing high-quality trailers that meet the diverse needs of our customers.
Technical Specification
Bucket capacity | 40-80 cubic meters |
Axles | 3 axle 13T/16T, FUWA / BPW |
Lifting system | Lifting cylinder 5x130 bore, a shift cylinder |
Dump semi trailer size | 11000mmx2500mmx3200mm |
Dump Box | T700 double plate |
Material | Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 16mm, Material: T700 steel. |
Braking System | Air Dual braking system,with relay valve |
1. High Load Capacity: Capable of carrying up to 80 tons, this trailer significantly reduces the number of trips needed, improving operational efficiency and cutting down transportation costs.
2. Enhanced Stability: The tri-axle design and heavy-duty mechanical suspension provide excellent stability even under challenging road conditions.
3. Use Heavy-duty landing gear,reinforced designed to handle significantly greater weight and stress.
3 Axle Dropside Side Tipper Trailer
Designed to transport materials like sand,coal, and construction debris. suitable for the industry link mining, construction, and agriculture,This allows for faster and more efficient unloading, especially in tight spaces or when working in areas where a rear dump wouldn't be practical.
Our 80 ton side tipper semi tipper trailers are extremely popular and highly recommended by customers in markets across Africa, the Middle East, and Southeast Asia. We take pride in providing high-quality trailers that meet the diverse needs of our customers.
Technical Specification
Bucket capacity | 40-80 cubic meters |
Axles | 3 axle 13T/16T, FUWA / BPW |
Lifting system | Lifting cylinder 5x130 bore, a shift cylinder |
Dump semi trailer size | 11000mmx2500mmx3200mm |
Dump Box | T700 double plate |
Material | Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 16mm, Material: T700 steel. |
Braking System | Air Dual braking system,with relay valve |
1. High Load Capacity: Capable of carrying up to 80 tons, this trailer significantly reduces the number of trips needed, improving operational efficiency and cutting down transportation costs.
2. Enhanced Stability: The tri-axle design and heavy-duty mechanical suspension provide excellent stability even under challenging road conditions.
3. Use Heavy-duty landing gear,reinforced designed to handle significantly greater weight and stress.
