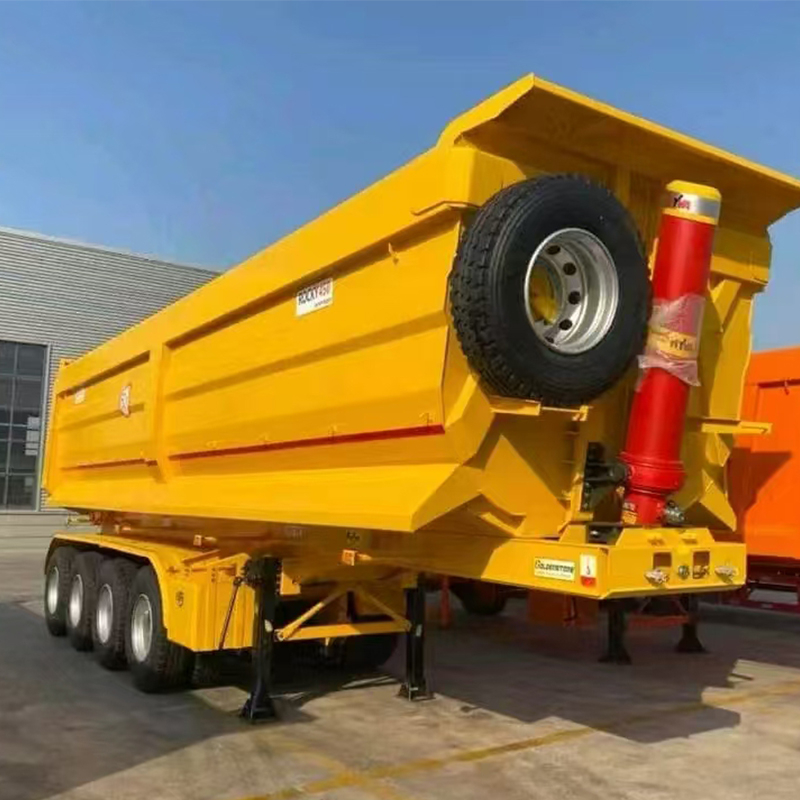

Rear dump semi trailer are designed to transport bulk materials, similar to a traditional dump truck, but with the ability to unload its contents from the rear.normally the end dump trailer including chassis,dump body,Hydraulic System,Suspension System,braking system,Tires and Wheels,Kingpin and Landing Gear and so on.
The structure of end dump Semi Trailers
The chassis is the main framework of the dump truck trailer.Usually made from high-strength steel or aluminum for durability and load-bearing capacity.
Dump body Design Can vary in shape, including rectangular, semi-circular, or U-shaped designs for optimized material flow during unloading.
Braking System,Commonly used with chambers, hoses, and control valves.
Hydraulic System including cylinder,pump,reservoir and valves.
Technical Specification
Bucket capacity | 30/35/40 cubic meters |
Axles | 3 Axles*13/16Ton,FUWA/BPW or Customization |
Lifting system | HYVA brand,FE/FC type cylinders,Diameter=191 mm |
Dump semi trailer size | 10000x2500x3800mm |
Dump Box | T700 / Q345B double plate |
Material | Q345B,Beam Height:500mm,Upper Plate:14mm ,Bottom Plate:16mm,Middle:8mm |
Braking System | Air Dual braking system |
| Suspension | Heavy duty mechanical suspension / Air bag / Bogies |
Dump Semi Trailers Features
Designed for stability during unloading, with a wide base to prevent tipping over.
Air dual braking system with double air chambers,more safety and reliable
Using electrophoretic and sandblasting technology, extend the service life.
Adopt high-quality manganese plates for the beam and longitudinal beam provides exceptional strength and toughness, allowing the trailer to handle heavy loads effectively.
If you're considering purchasing a 45cbm rear dump trailer, it would be beneficial to assess your specific needs, such as the type of materials you'll be transporting and the terrain you'll be operating on. Additionally, reaching out to Boca for more detailed information or a quote can provide further insights into how their trailers can meet your requirements.
