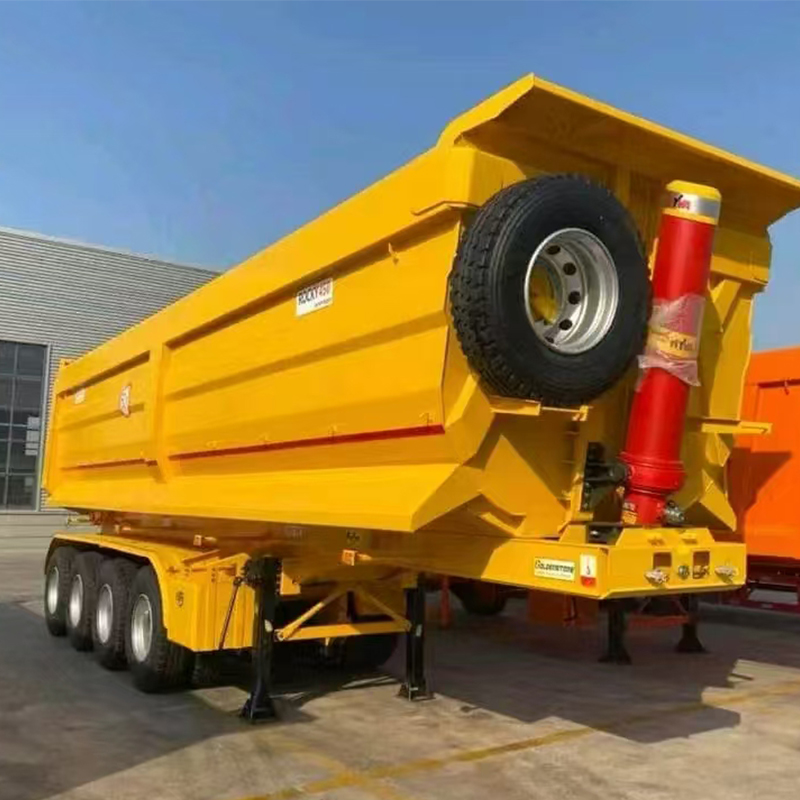

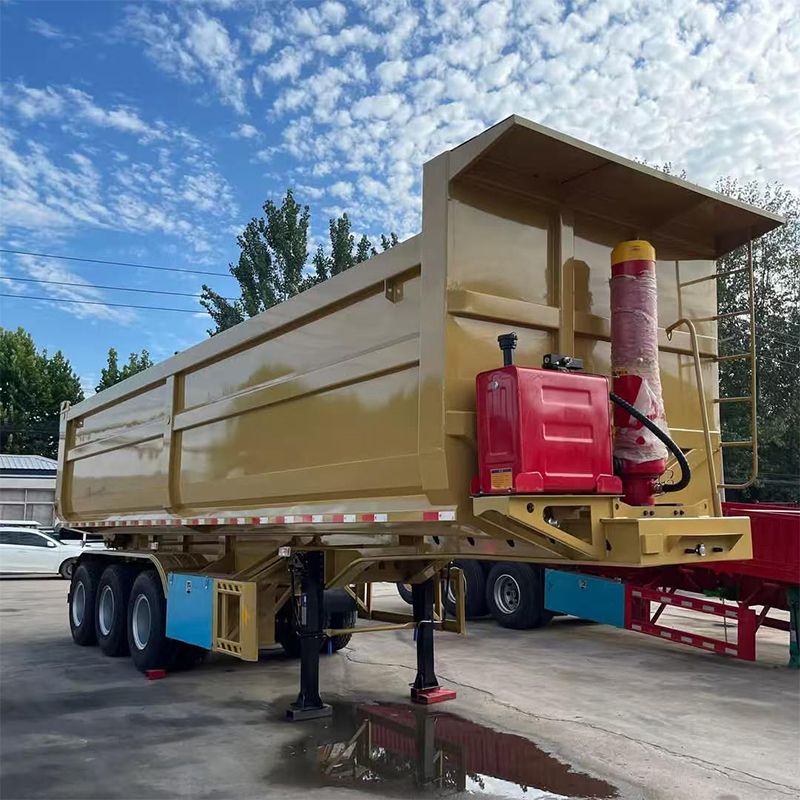

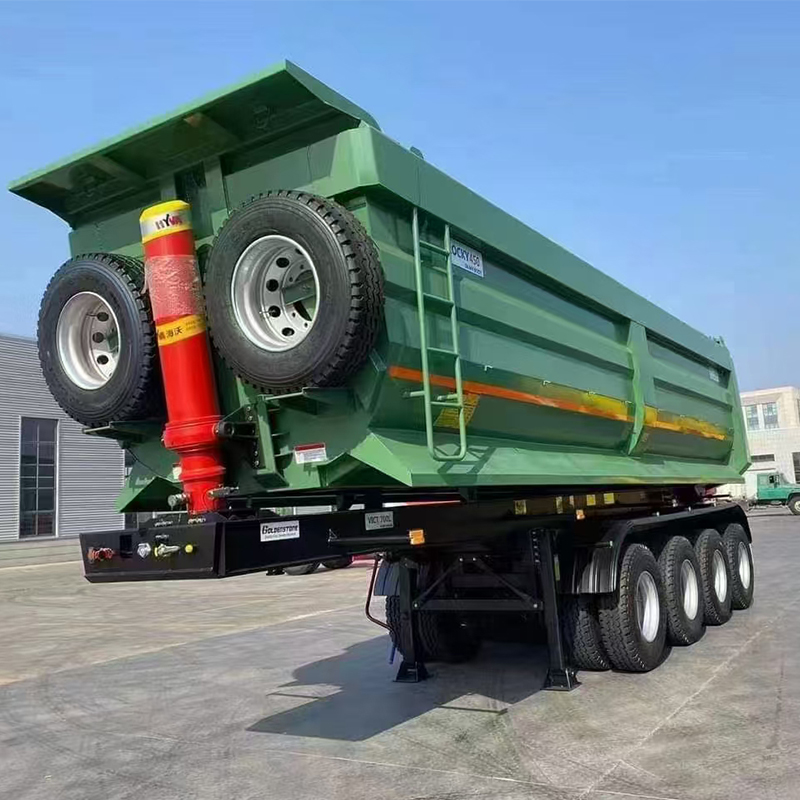

3 Axle 30T Dump truck semi trailer
Dump semi trailer are designed to be attached to a truck tractor and features a hydraulic system that allows the trailer bed to tilt, enabling materials to be unloaded quickly by gravity,used to transport and unload bulk materials, Whether you need a standard model or a customized design, we focus on design high-quality, efficient, and reliable dump semi trailers.
1.The flexible support of the flip bracket can make the force on the rear end more uniform when unloading cargos, and protect the semi tipper trailer from damage.
2. Adopt HYVA hydraulic cylinder with wider diameter, stronger lifting capacity wihtout rollover.
3. Install ribs to strengthen the side wall of the dump trailer more stable and strength.
4. Axles and Tires: Designed to handle heavy loads and rough terrains.
Bucket capacity | 30/35/40 cubic meters |
Axles | 3 Axles*13/16Ton,FUWA/BPW |
Lifting system | HYVA brand,FE/FC type cylinders,Diameter=191 mm |
Size | 10000x2500x3800mm |
Dump Box | T700 / Q345B double plate |
Material | Q345B,Beam Height:500mm,Upper Plate:14mm ,Bottom Plate:16mm,Middle:8mm |
Braking System | Air Dual braking system,with relay valve |
Suspension | Mechanical suspension |
Landing gear | 28 Tons Two Speed |
1. Robust Construction: made from high-strength steel, the trailer provides exceptional durability and a stronger loading capacity, ensuring it can handle heavy loads with ease.
2. Advanced Welding Technique: The fully automatic tracking submerged arc welded frame enhances the trailer's stability and durability, even under challenging conditions, ensuring long-lasting performance.
3. Efficient Hydraulic System: equipped with a high-quality HYVA hydraulic cylinder, the trailer offers strong lifting force, enhancing safety and stability during loading and unloading. This results in improved operational efficiency.
