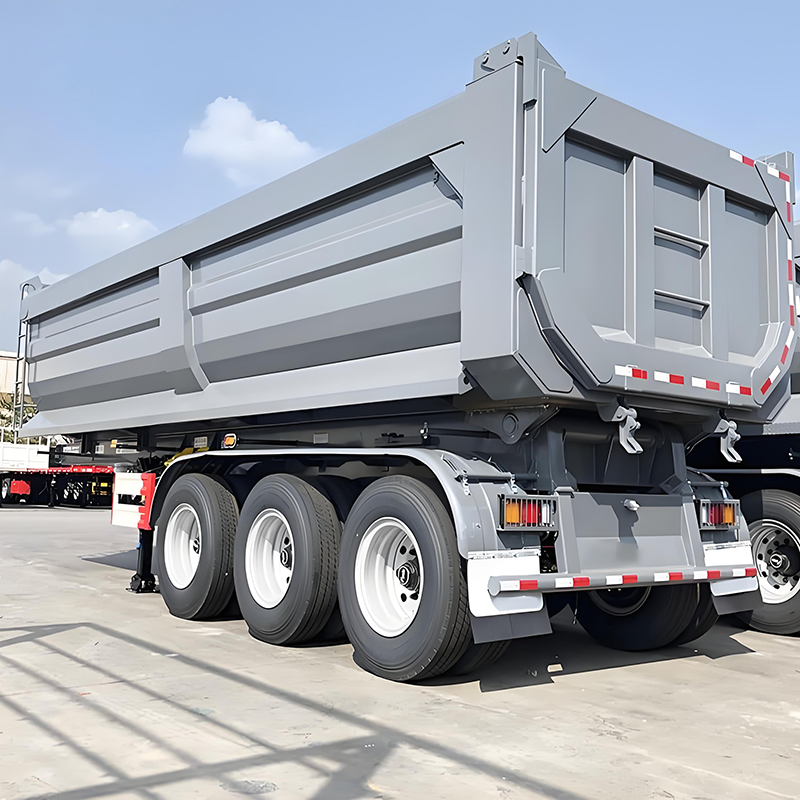

40Ton U Shape Dump Semi Trailer
Tipping semi trailer are widely used in industries like construction, mining, and agriculture due to its ability to efficiently transport and unload bulk materials. design with a robust chassis,durable box body, and a reliable hydraulic lifting system, ensures that it can handle heavy loads and withstand challenging working conditions. clients benefit from enhanced operational efficiency, reduced unloading times, and improved safety on site.
1. The trailer is hinged at the rear, allowing the front end to lift for unloading materials from the back.
2. Uses hydraulic cylinders to raise the front of the trailer for dumping.controlled from the truck cab for safety and efficiency.
3. Typically ranges from 20 to 40 cubic yards depending on size and configuration.
4. Roll-up or automatic tarps to secure loads and prevent spillage during transport.
Technical Specification
Bucket capacity | 30/35/40 cubic meters |
Axles | 3 Axles*13/16Ton,FUWA/BPW |
Lifting system | HYVA brand,FE/FC type cylinders,Diameter=191 mm |
Size | 10000x2500x3800mm |
Dump Box | T700 / Q345B double plate |
Material | Q345B,Beam Height:500mm,Upper Plate:14mm ,Bottom Plate:16mm,Middle:8mm |
Braking System | Air Dual braking system,with relay valve |
Suspension | Heavy duty mechanical suspension |
Landing gear | 28 Tons JOST Two Speed |
Advantages:
1. Large Capacity: Suitable for transporting significant volumes of material in one trip.
2. Quick Unloading: Hydraulics enable fast and easy dumping.
3. Versatility: Handles loose materials like gravel, sand, and soil as well as larger items like demolition debris.
4. Off-Road Capability: Performs well on construction sites and uneven terrain.
