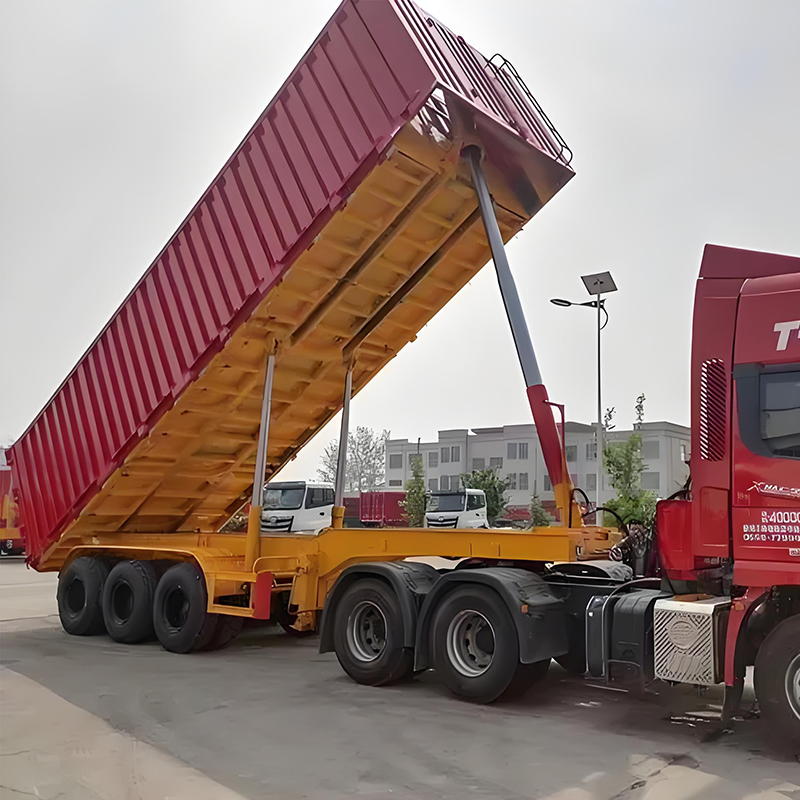

Rectangular End Dump Semi Trailer is the best tool for transporting transporting of bulk, loose goods such as coal, ore and building materials, sand and soil.adopt HYVA cylinder,which ensure the quality of our trailer.There are two kinds of dump body structure:u shaped and rectangular to offer flexibility to meet different transportation needs. Its load capacity ranges from 40 ton to 120 ton, providing options to accommodate varying cargo sizes.

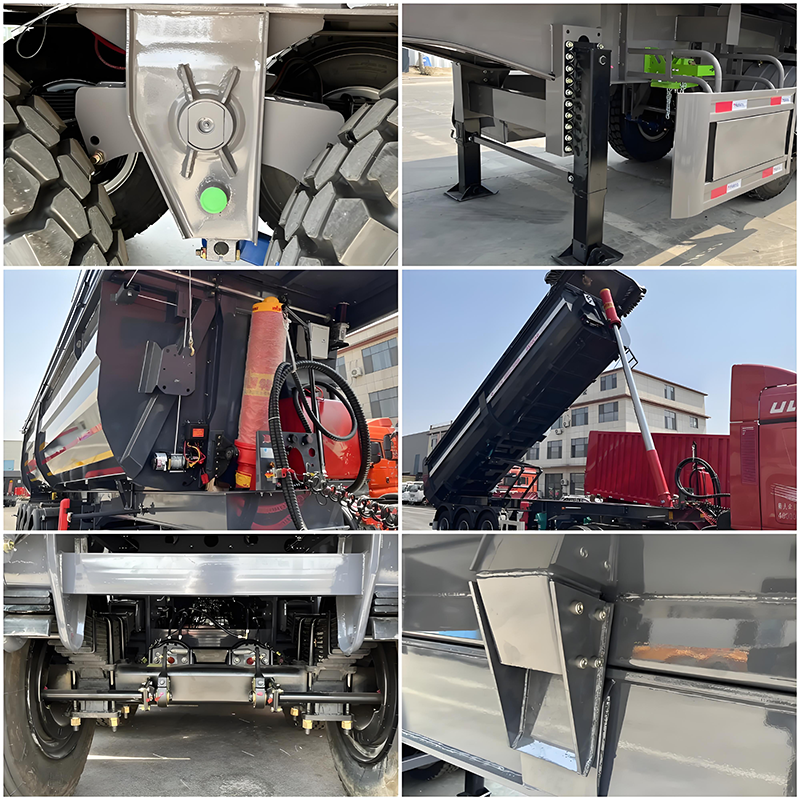

The structure of rear tipper semi Trailers Features
Main bream usually made of high-strength steel to support heavy loads
Rectangular tipper truck trailer adopts reinforced Mechanical suspension,this kind of suspension is low price, good reliability and easy maintenance
Adopt air braking system includes brake chambers,discs, and other components to provide stopping power.
Dump body Design Can vary in shape, including rectangular, semi-circular, or U-shaped designs for optimized material flow during unloading.
Technical Specification
Bucket capacity | 40 cubic meters |
Axles | 4 Axles*13/16Ton,FUWA/BPW or Customization |
Lifting system | HYVA brand,FE/FC type cylinders,Diameter=202mm |

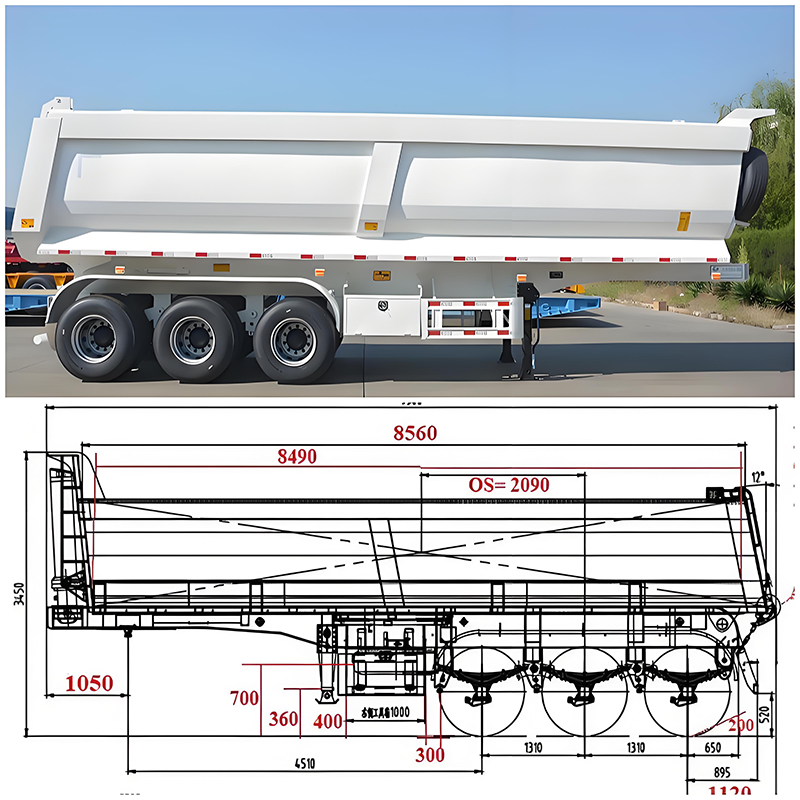

Dump semi trailer size | 10500*2500*3900mm |
Dump Box | T700 / Q345B double plate |
Material | Q345B,Beam Height:500mm,Upper Plate:14mm ,Bottom Plate:16mm,Middle:8mm |
Braking System | Air Dual braking system,with relay valve |
Suspension | Heavy duty mechanical suspension / Air bag / Bogies |
Landing gear | 28 Tons Two Speed,JOST/Other Brand |
Dump Semi Trailers Features
The rectangular tipper semi trailer main beams span the length of the trailer and support the cross members that hold the dump body
Multiple Applications for the rectangular dump trailer ,suitable for transporting not only bulk materials but also pallets or containers when needed
Rectangular tipper trailer have a dual air brake system, which consists of two separate air tanks and circuits.
The rectangular end tipper trailer Use Heavy-duty landing gear, reinforced landing gear systems designed to handle significantly greater weight and stress.
