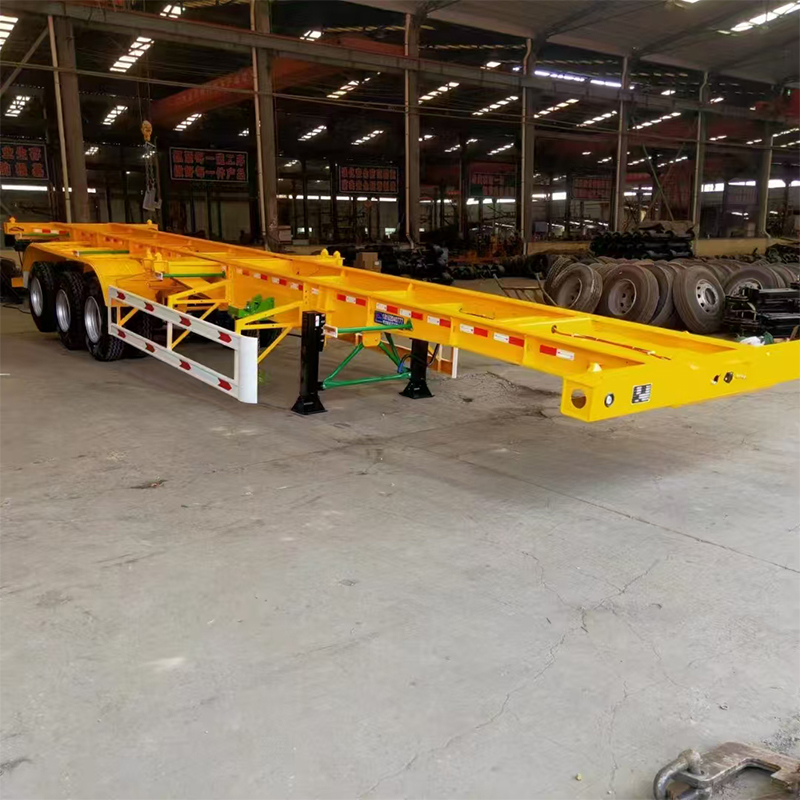

40foot 45foot Shipping Skeletal Container Chassis Semi Trailer
Skeleton Chassis trailer is a heavy-duty, open type semi trailer specifically designed for carrying shipping containers. frame is made of steel to withstand the heavy loads of containers.designed to transport standard shipping containers (typically 20 foot ,40 foot or 45 foot containers) but can be adapted for various sizes.
1. The backbone made of high-strength steel to support heavy loads.
2. Using electrophoretic and sandblasting technology, extend the service life.
3. Cooperate with famous partner like WABCO,FUWA,HYVA and so on to easure stability.
4. The Terminal Skeleton Trailer suspension system absorbs shocks and provides a smoother ride when transporting containers over rough terrain.
Technical Specification
Axles | 3/4 Axles*13/16Ton,FUWA/BPW or Customization |
Loading Capacity | 30-80 Tons |
Size | 13950*2500*1600mm |
Material | T700,Beam Height:420mm,Upper Plate:10mm ,Bottom Plate:10mm,Middle:5mm |
Twist Lock | 12 Sets of 40ft container |
King Pin | 50#(2")/90#(3.5") JOST/Other Brand |
Braking System | Air Dual braking system,with relay valve |
Suspension | Reinforced mechanical Suspension,90mm*13mm*10 layers |
Landing gear | 28 Tons Two Speed,JOST/Other Brand |
1. Designed safely under a variety of conditions, such as rough roads or high-speed travel, while withstanding wear and tear over time.
2. Adopts heavy-duty mechanical suspension system or optional air suspension
3. Skeleton trailers will go through strict tests and pressure-bearing performance inspections before leaving the factory.
4. Container shipping semi trailer have twist lock device for fixing the container,for the Payload of the container trailer
