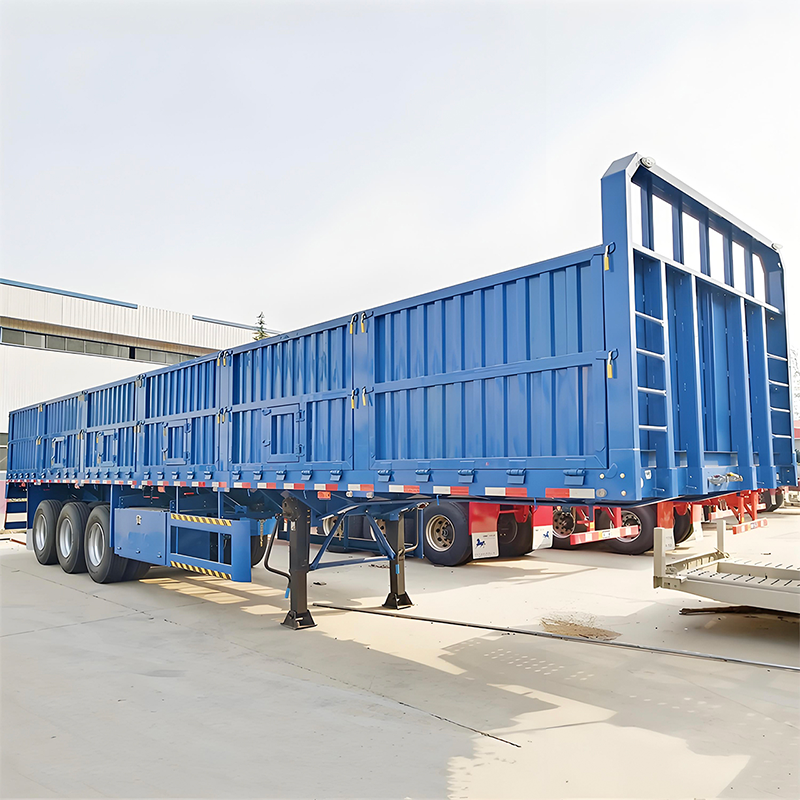

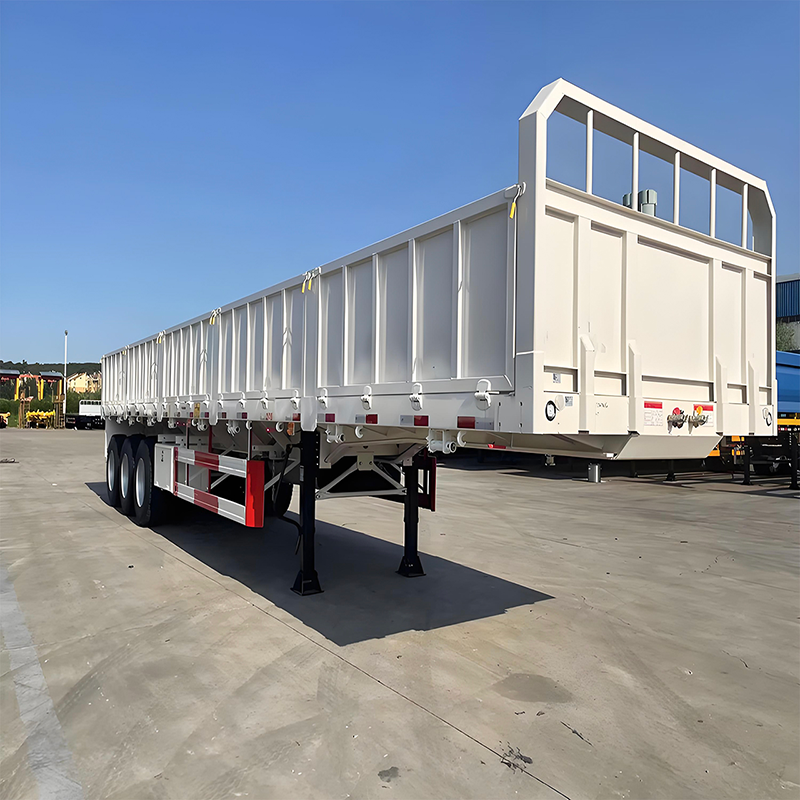

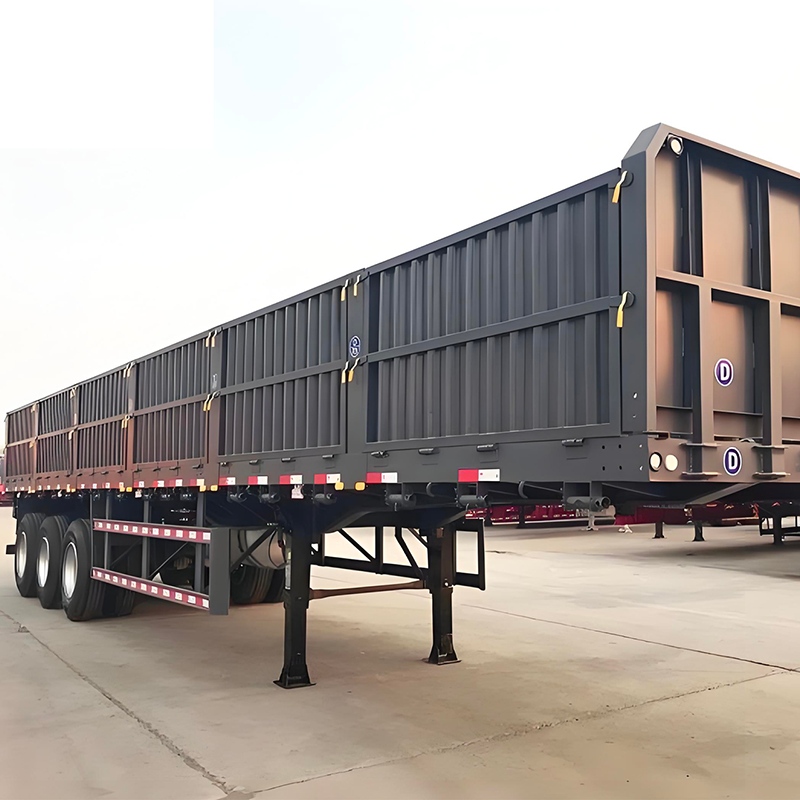

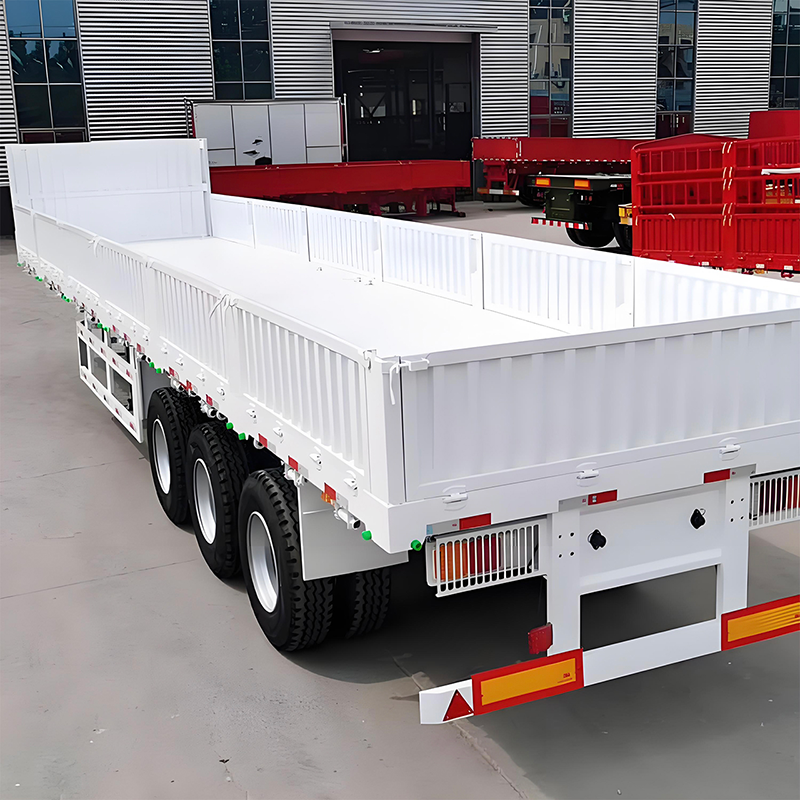

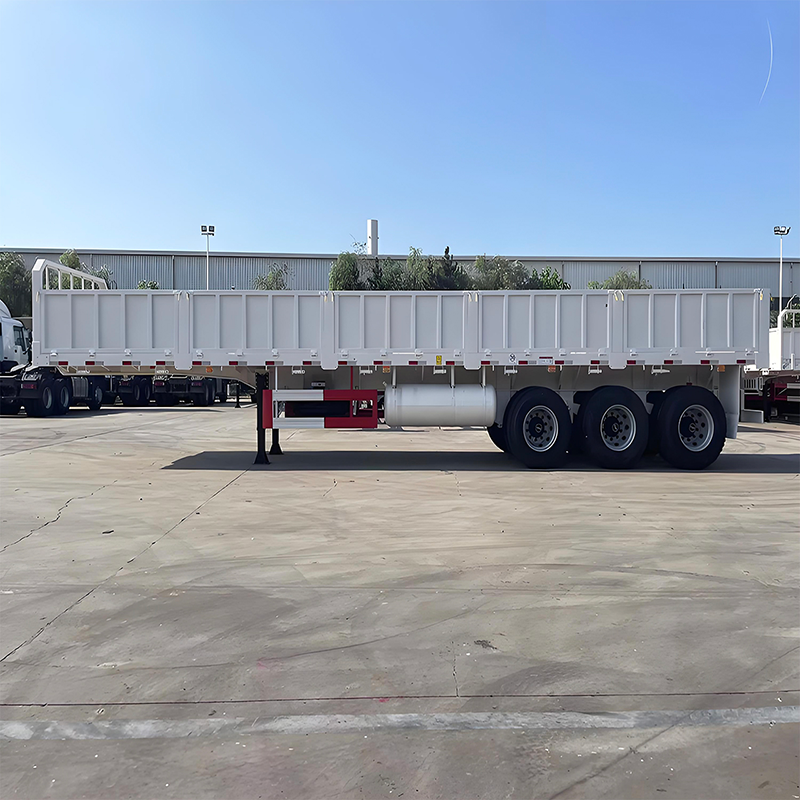

3 Axle Drop Side Semi Trailer
Drop side semi trailer is a type of flatbed trailer equipped with hinged side panels that can be lowered or removed to facilitate easy loading and unloading of cargo. Dropside Trailer are versatile and commonly used in the transportation of goods, particularly those requiring easy access during loading and unloading operations.
1. Side Wall Semi Trailer transport of bricks, cement bags, steel rods, pipes, and lumber or other construction material.
2. Carrying bulk grains, fertilizers, and farming equipment.
3. Ideal for transporting boxed goods, pallets, and other commercial products.
4. Moving heavy machinery and parts that may not fit into standard enclosed trailers.
1. SideWall Trailer hinged side panels allow for quick and convenient loading/unloading from the sides, especially useful for palletized goods or bulk materials.
2. Provides flexibility for carrying oversized or irregularly shaped cargo. A tarpaulin cover can be added to protect the load from weather.
3. Flatbed Base with Removable Sides:Acts as a flatbed trailer when the sides are removed, increasing versatility.
Technical Parameter
Max Payload | 40-100Tons |
Axles | 3 Axles*13/16Ton,FUWA/BPW or Customization |
Size | 12400*2610*1550mm (Customized) |
Material | Q345B,Beam Height:500mm,Upper Plate:14mm ,Bottom Plate:16mm,Middle:8mm |
Bottom plate thickness | 3mm diamond plate |
Sidewall Thickness | 1.5mm - 2.5mm Q235 steel (Customizable) |
Side wall height | 600-1700mm (Customizable) |
Braking System | Air Dual braking system,with relay valve |
Suspension | Heavy duty mechanical suspension / Air bag / Bogies |
Landing gear | 28 Tons Two Speed,JOST/Other Brand |
1. Durability and Strength: The main beam is made from high-strength steel plate, which provides exceptional durability and reliability. This robust construction ensures the trailer can withstand the demands of transporting heavy and bulky loads.
2. Flexibility: With parts processed using advanced equipment, drop side semi trailers offer enhanced practicality and flexibility. They can accommodate different types of cargo, making them versatile for various transportation needs.
3. Structural Integrity: The use of automatic robot welding technology in constructing the trailer frame results in tight and flawless solder joints. This precision welding ensures the structural integrity of the trailer, even under the stress of heavy loads.
