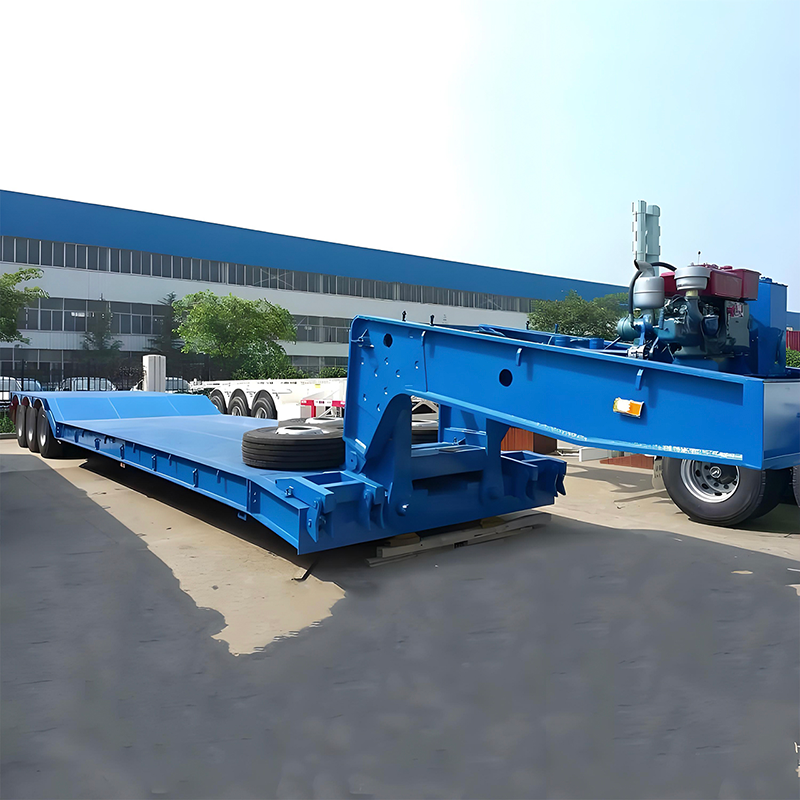

Detachable Gooseneck Lowboy Trailers
RGN Lowboy Trailers are specialized heavy-haul trailers designed to transport oversized, tall, and heavy equipment. Their removable gooseneck feature makes loading and unloading easy, especially for self-propelled machinery like bulldozers and excavators.Its robust design makes it suitable for a diverse range of applications.Our inventory features 2 axle, 3 axle, and 4 axle lowbed semi trailers, each capable of handling between 30 to 100 tons of bulk cargo.

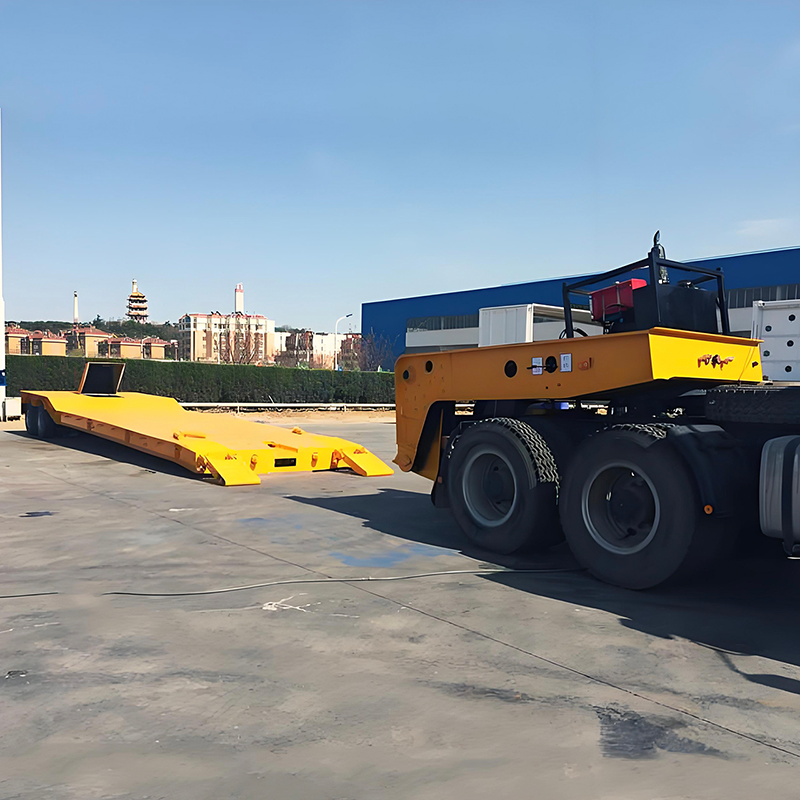

1. Gooseneck detaches design,allowing the gooseneck trailer's deck to drop to the ground, creating a ramp for loading and unloading.
2. Hydraulic or Mechanical Systems for smooth detachment and reattachment
3. Design with lower deck height to provides a low center of gravity, allowing tall cargo to clear height restrictions.
4. Lowboy Truck Trailer with high Load Capacity,designed to handle heavy loads with additional axles for increased capacity.
Technical Specification
Axles | 3 Axles*13Ton,FUWA/BPW or Customization |
Loading Capacity | 80-150 Tons |
Size | 17900mm * 2500mm *2200mm |
Chassis | Heavy Duty and Extra Durability Designed; Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel. Bottom Platform: 5mm thick, checkered plate |
Gooseneck | Removable gooseneck |
Floor | 3~8mm Checker Plate. |
Hydraulic cylinder | 12KW diesel engine with hydraulic station |
Braking System | Air Dual braking system,with relay valve |
Suspension | Leaf Spring Suspension / Air Suspension |
