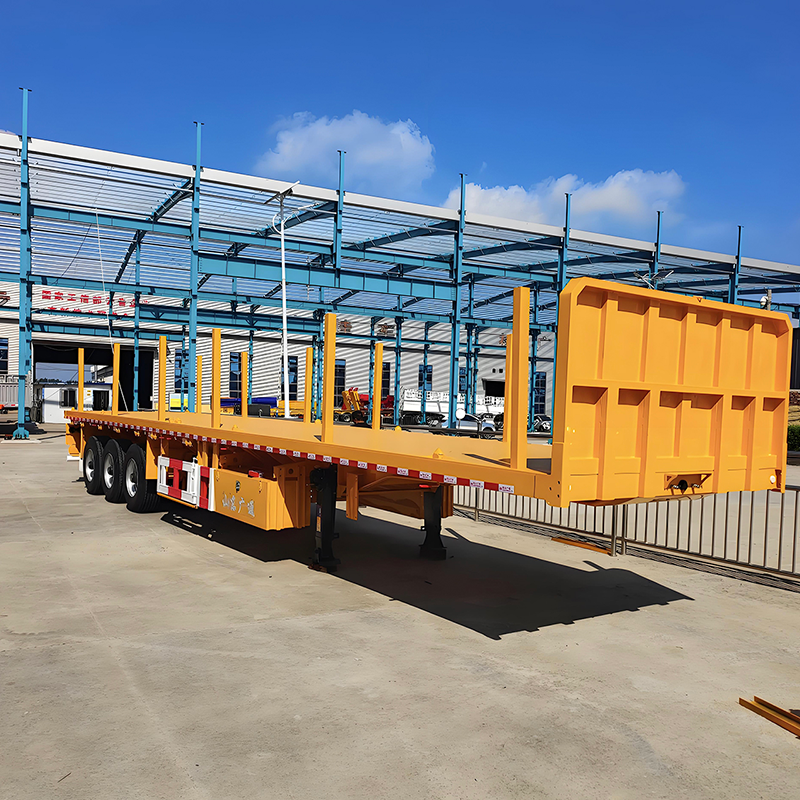

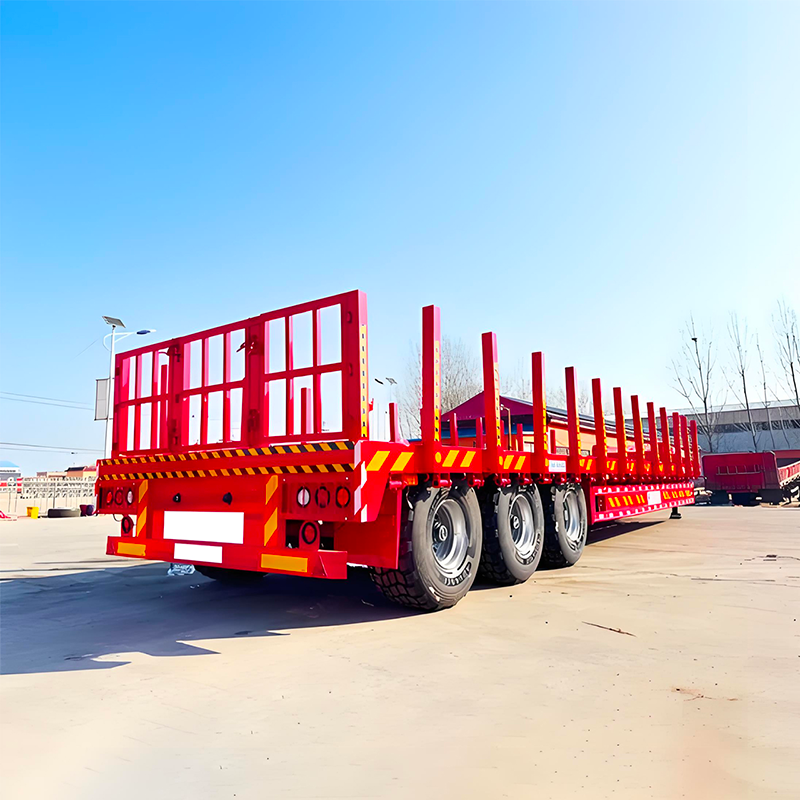

Wooden Timber Log Semi Trailer
The log semi-trailer is equipped with adjustable or fixed vertical piles, providing flexible sealing for logs of various lengths and diameters. This ensures safe transportation and reduces the risk of rolling or displacement during transportation.This trailer is constructed with Q345B high-strength steel, with a beam height of 500mm and a reinforced mechanical suspension (90mm, 13mm, 10 layers), ensuring excellent load-bearing capacity and outstanding road stability.
| Specification | Description |
|---|---|
| Trailer Type | Wooden Timber Log Semi Trailer |
| Axle Configuration | 2 or 3 Axles, FUWA/BPW or Customized |
| Load Capacity | 30–80 Tons |
| Dimensions | 12400 × 2500 × 3260 mm |
| Material | Q345B High-Strength Steel |
| Beam Structure | 500mm Height (14/16/8mm plate combo) |
| Stake Configuration | 16 Stakes, Fixed or Adjustable |
| King Pin | 50# (2") / 90# (3.5"), JOST / Others |
| Braking System | Dual Air Brakes, Relay Valve, ABS Option |
| Suspension | Reinforced Mechanical, 90mm × 13mm × 10 |
| Tire Options | 12R22.5, 8 or 12 pcs, Multiple Brands |
1.Superior structural rigidity
Made of Baosteel, the beam structure is optimized, featuring high strength, light weight and long service life.
2.Customizable configuration
A variety of axle, tire and pile layouts are available, and ensure that equipment such as winches and chains are tailored to your transportation needs.
3.Full life cycle support
The main beam is covered by a 5-year warranty, with rapid response service for spare parts and remote technical support for overseas users.
1.Forestry and logging
Ideal timber companies, forest farms, and logging operations require heavy and safe transportation of logs.
2.Sawmills and wood processing
Support the transportation of bulk raw materials to sawmills and processing plants to minimize unloading time and maximize loading capacity.
3.For mountain and off-road use
It adopts a reinforced suspension and balance structure, suitable for rough terrain and long-distance routes.
1.Packaging
The trailer is dispatched without a casing or coated with protective wax. Steel wire fixation, and waterproof canvas can be added as required.
2.Delivery date
Standard orders will be delivered within 10 to 25 working days. Urgent or customized orders can be processed with priority upon request.
3.Shipping options
It can be used for container loading, roll-on/roll-off transportation, or bulk transportation, depending on the destination and order volume.
