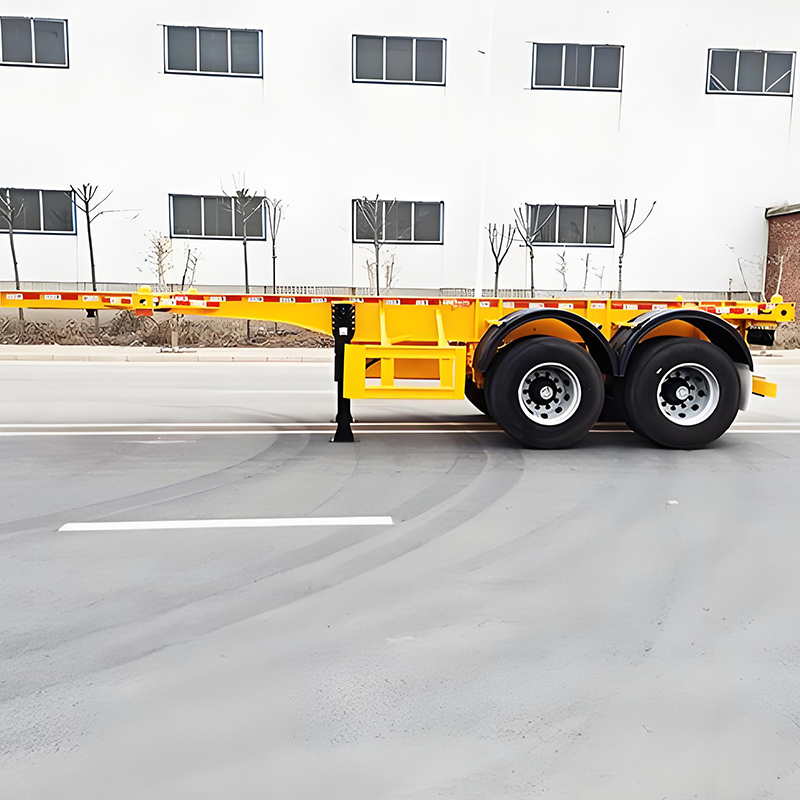

2 Axle 20FT Skeleton Container Semi Trailer
Skeleton semi have a feature design for the chassis lower profile without platform form and side bream,this design are light and high strength to supports the container. The container chassis is equipped with specific twist locks, which are mechanisms designed to secure the corners of a container to the trailer, preventing it from shifting or falling off during transport.
The structure of 20Ft Skeleton Semi Trailers
Longitudinal beams that run the length of the trailer, providing the primary support for the trailer,with light weight design to ensure the strength with bending forces well.
Braking system have dual air brakes connected to the tractor’s braking system for safe stopping.
Reinforced landing gear systems adopt high-strength steel and durability design without bending
Adopts Reinforced Mechanical suspension adopts special high strength steel 6mm thickness,Center pin diameter is 70mm with reinforcement.
Technical Specification
Axles | 2 /3 Axles*13Ton,FUWA/BPW or Customization |
Loading Capacity | 20-60 Tons |
20Ft Skeletal trailer size | 7000*2500*1570mm |
Material | Q345B,Beam Height:500mm,Upper Plate:12mm ,Bottom Plate:12mm,Middle:6mm |
Twist Lock | 4 Sets of 20ft container |
Braking System | Air Dual braking system |
Suspension | Reinforced mechanical Suspension |
Landing gear | 28 Tons Two Speed |
Skeleton Semi Trailers Features
The main beam is made of high-strength steel plates, and we eliminate the use of surplus steel plates and inferior steel plates.
Suspension system is designed to be robust, durable, and capable of handling a wide range of conditions.
Braking system equipped with WABCO brand to improve the braking performance of the vehicle.
Equipped with high-strength wear-resistant tires , which can safely drive up to 300,000 kilometers, safe and reliable.
