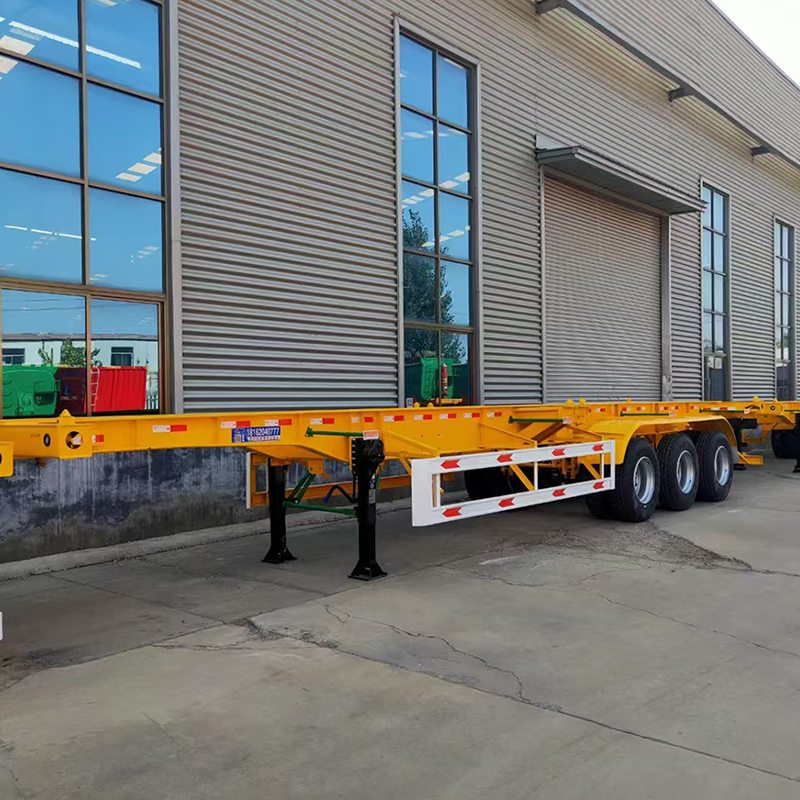

20 Foot 40 Foot Tri Axle Container Chassis Skeletal Semi Trailer
3 Axle Skeleton Semi Trailer is a type of heavy-duty trailer designed specifically for transporting shipping containers. typically used in logistics and freight transport industries to move containers, especially in intermodal transportation.
Boca container chassis trailer is particularly design, which combines a lightweight build with agile steering. This design not only maximizes payload capacity but also contributes to lower fuel consumption, making it a cost-effective and environmentally friendly choice for your transportation needs.

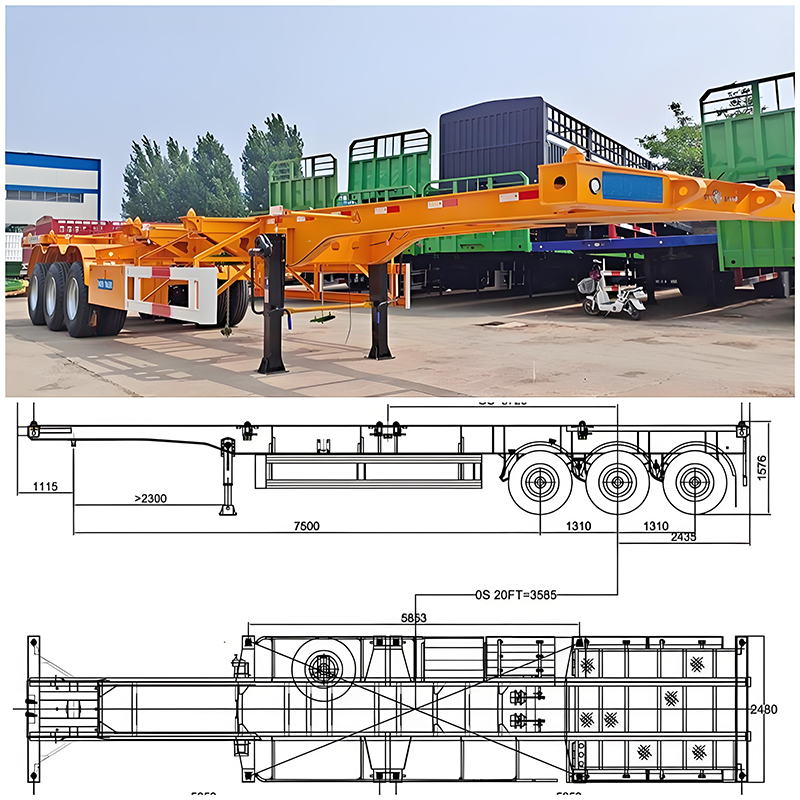

The structure of 40Ft Skeleton Semi Trailers
The skeleton semi trailer main bream adopt high Strength Q345B/T700 to provide durability and strength.
Cross bream Support the floor,distribute weight evenly across the main beam,Reduce twisting and flexing of the trailer during movement to avoid damage.
Trailer design is lightweight yet strong, offering flexibility to carry various sizes of containers.
Equipped with container locks and mechanisms to secure the container in place during transport.
Technical Specification
Axles | 2 /3 Axles*13Ton,FUWA/BPW or Customization |
Loading Capacity | 30-80 Tons |
Size | 12400* 2500*1570mm |
Material | Q345B,Beam Height:500mm,Upper Plate:12mm ,Bottom Plate:12mm,Middle:6mm |
Twist Lock | 12 Sets of 40ft container |
Braking System | Air Dual braking system |
Suspension | Reinforced mechanical Suspension |
Landing gear | 28 Tons Two Speed |

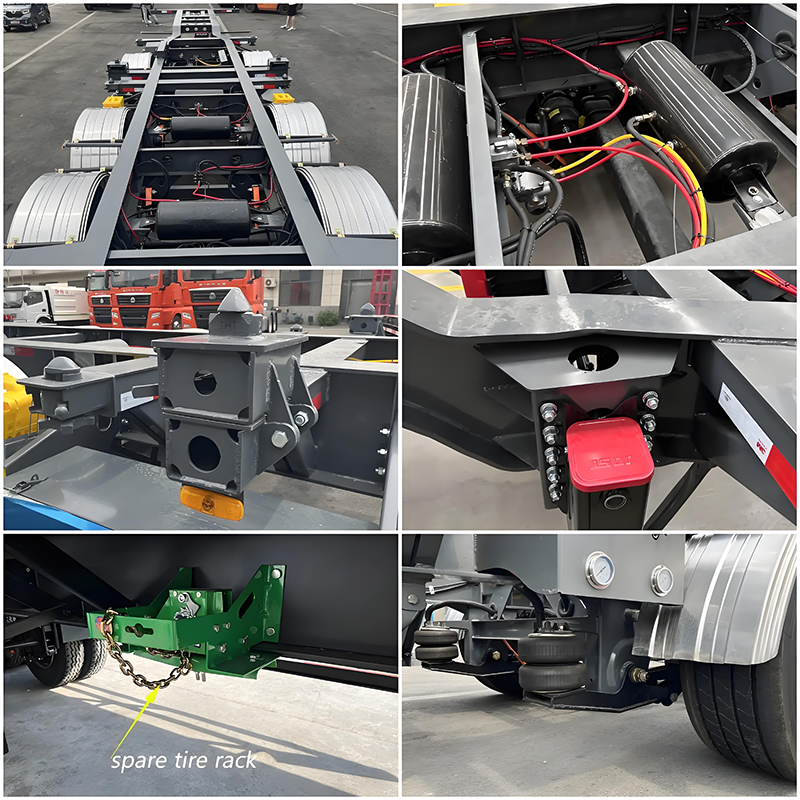

Skeleton Semi Trailers Features
Adopt high strength Bao-steel material with more strength,reliable and durable,with higher bearing capacity and ensure long time use for the bream to avoid bending and crack.
The dual air braking system are designed to slow down or stop the trailer when necessary.
Landing gear are built from high-strength steel to ensure they can handle significant loads without bending or failure.
Adopts reinforced Mechanical suspension,Low Price,good reliability and simple for easy maintenance.

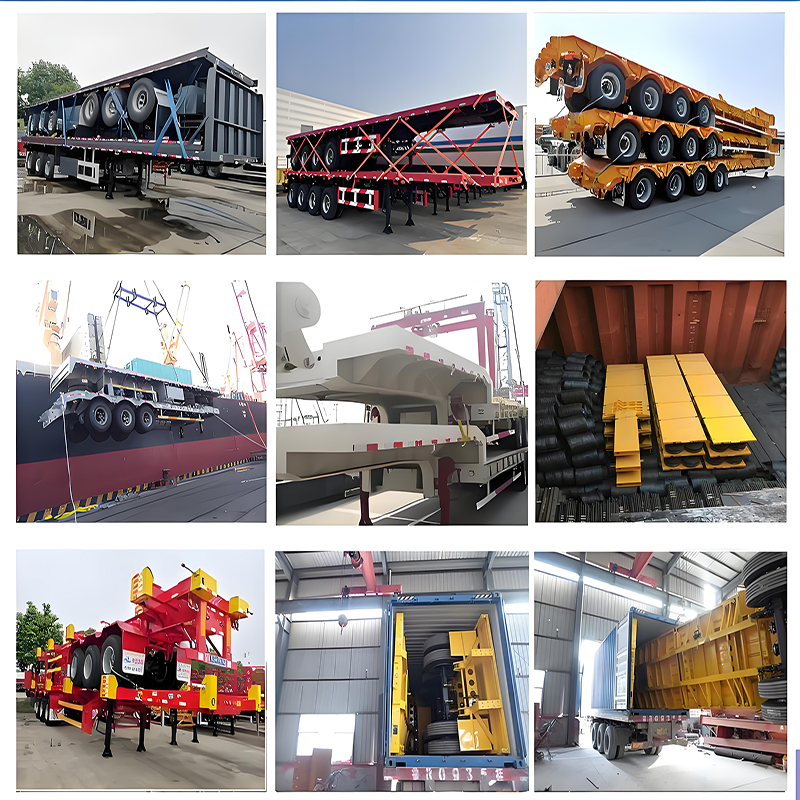

Shipping
