40ft Terminal Chassis Semi Trailer For Sale

Type: Terminal Chassis Trailer
Delivery: 7-12 Days
Application: Container Transport
Warranty: 5 Years
More safety:Best suspension,Axle and Braking system.
More stability:Fully automatic production.
Super rigidity:High strength Bao-steel material.
Timely Service:After sales service and spare parts supply.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Terminal chassis trailers are used to transport container around terminal,it can used for two 20ft container,one 40ft contianer or one 45ft container,The long conical side guide rails help crane operators accurately position the containers,Designed with precision, our bomb cart semi-trailers are tailored for ISO container transportation, making them ideal for use in diverse scenarios such as ports, docks, shipping lines, bridges, tunnels, and transfer stations.

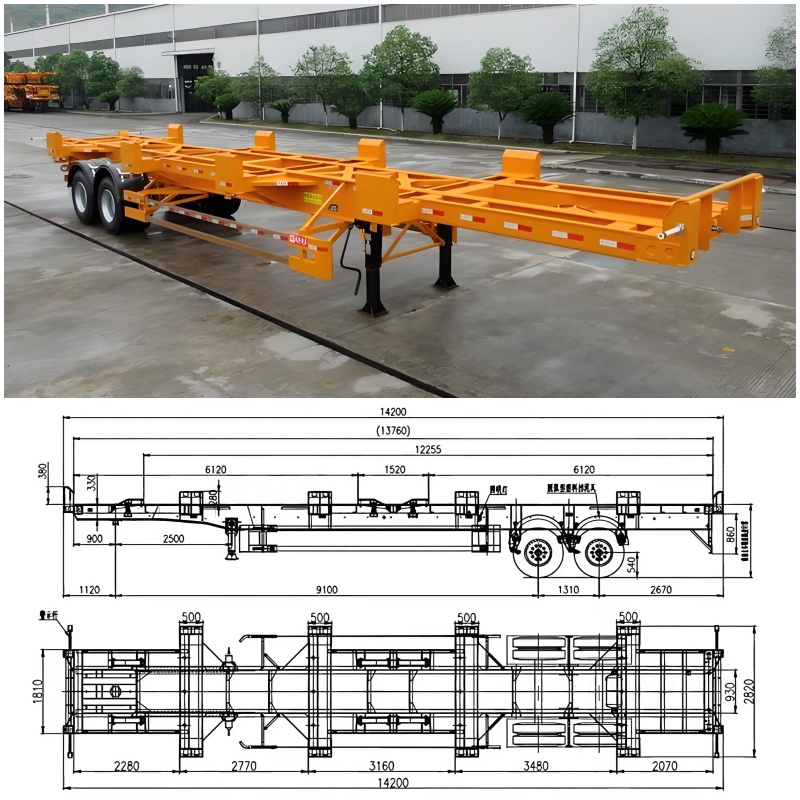

There are the drawing for the bomb cart trailer.

Technical Specification

Type	40ft Chassis Trailer
Axles	2 /3 Axles*13Ton,FUWA/BPW
Type	Gooseneck or Tandem
Loading Capacity	30-80 Tons
Size	12400* 2500*1570mm
Material	Q345B,Beam Height:500mm,Upper Plate:14mm ,Bottom Plate:16mm,Middle:6mm
King Pin	50#(2")/90#(3.5") JOST/Other Brand
Braking System	Air Dual braking system,with relay valve Six big chambers,Two air tanks
Suspension	Reinforced mechanical Suspension,90mm13mm10 layers
Landing gear	28 Tons Two Speed,JOST/Other Brand
