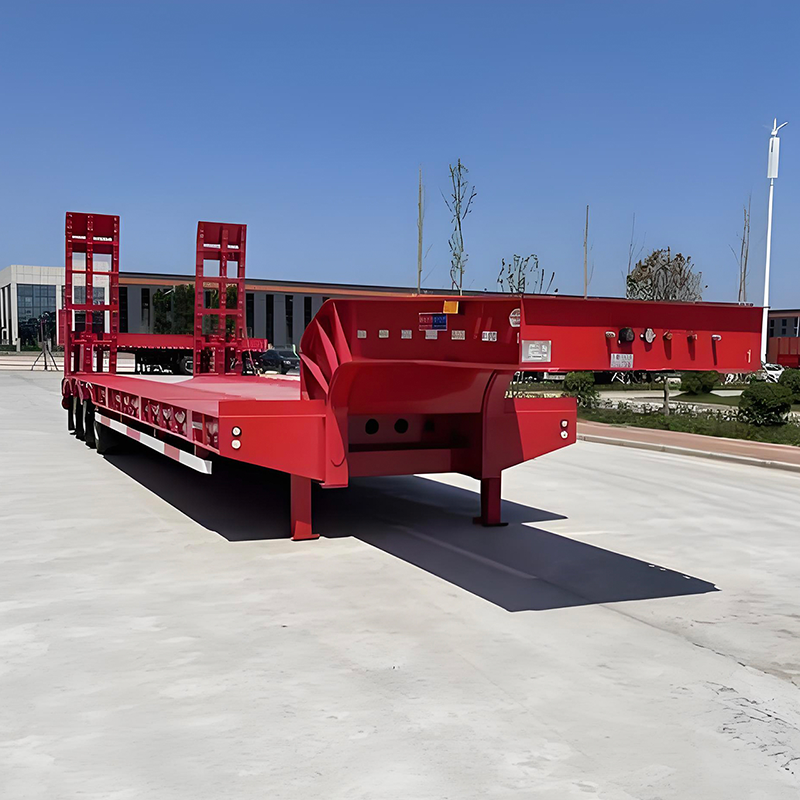

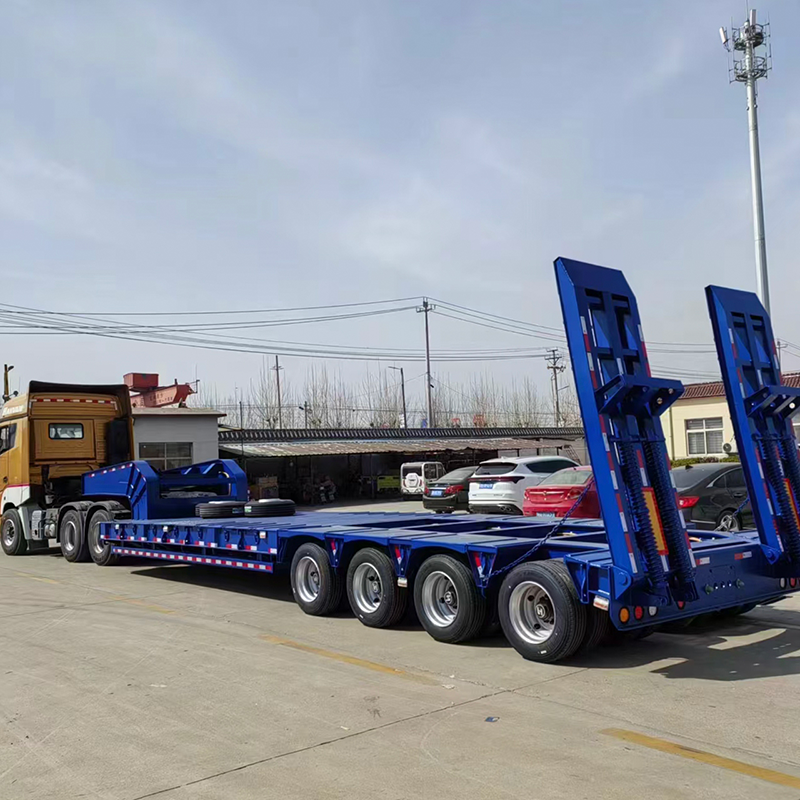

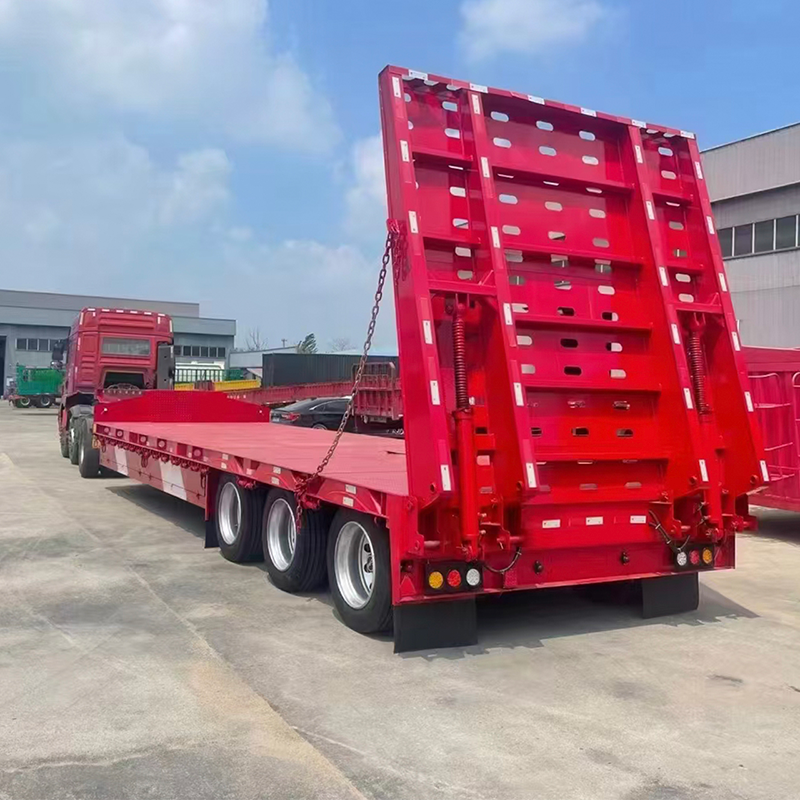

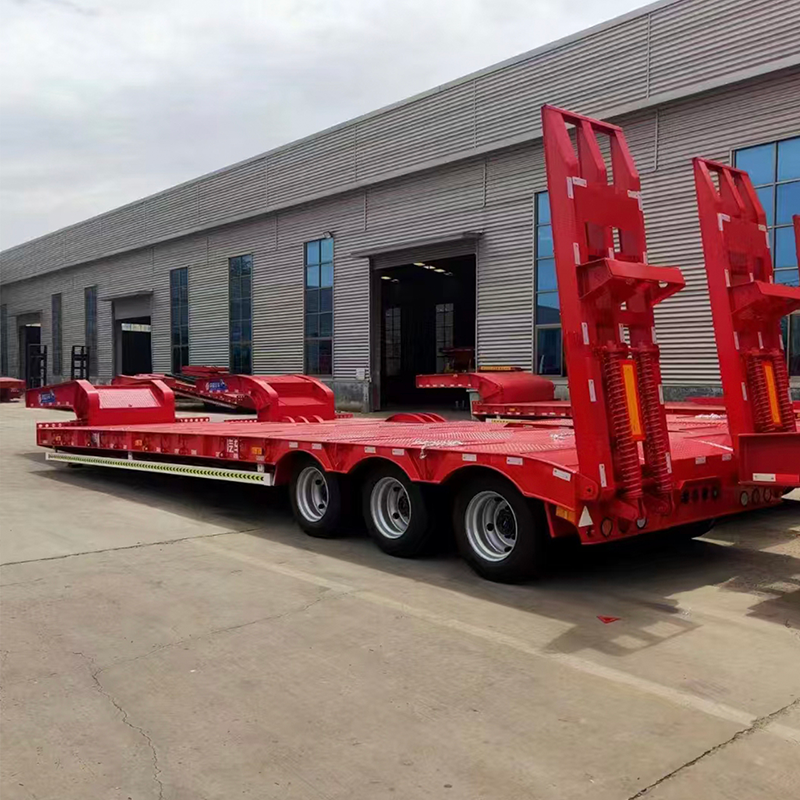

Lowbed Semi Trailer are widely used across various industries, including construction, have the capable of carrying loads that are typically too large or too heavy material and equipment. with a low platform height and a wide deck, which allows for easy loading and unloading of cargo. Normally equip with ramps that allow for easy loading and unloading of cargo,there are either hydraulic or mechanical for optional.
The structure of Low bed Semi Trailer
Including main frame, suspension system, axles, tires, and hydraulic extension system and so on.
Longitudinal beams that run the length of the trailer, providing the primary support for the trailer,with light weight design to ensure the strength with bending forces well.
Euipped with Reinforced Mechanical suspension,center pin diameter is 70mm with reinforcement.

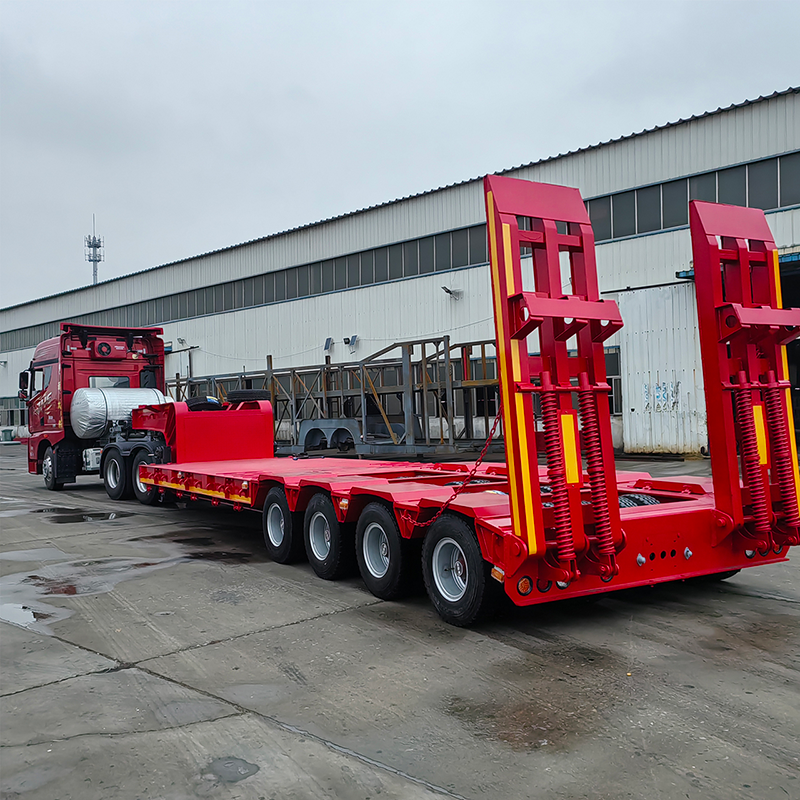

Have Gooseneck used for Front section connecting the trailer to the tractor unit.
Technical Specification
Axles | 4 Axles*13Ton,FUWA/BPW |
Loading Capacity | 50-100 Tons |
Low bed Trailer Size | 16000x2550x1700mm |
Chassis | High Tensile Steel T700; Top Flange 20mm, Width 140mm; Middle Flange 11.5mm; Bottom Flange 20mm, Width 140mm. |
Ramp | Mechanical Spring or Hydraulic Lifting (Optional) |
Floor | 5mm Checker Plate. |
Braking System | Air Dual braking system |
Suspension | Mechnical Suspension |
Landing gear | 28 Tons JOST Two Speed |
Gooseneck Lowbed Truck Features
Braking system adopt air relay valve ensures fast braking and improves safety during emergency stops.
Adjustable height allows to meet different heights to accommodate different types of cargo.
Using electrophoretic and sandblasting technology, extend the service life.
The use of world-renowned brand components ensures high-quality workmanship
Reduce the center of gravity of the cargo, improving transportation stability, and reducing the risk of tilting and rollover caused by a high center of gravity during driving.
