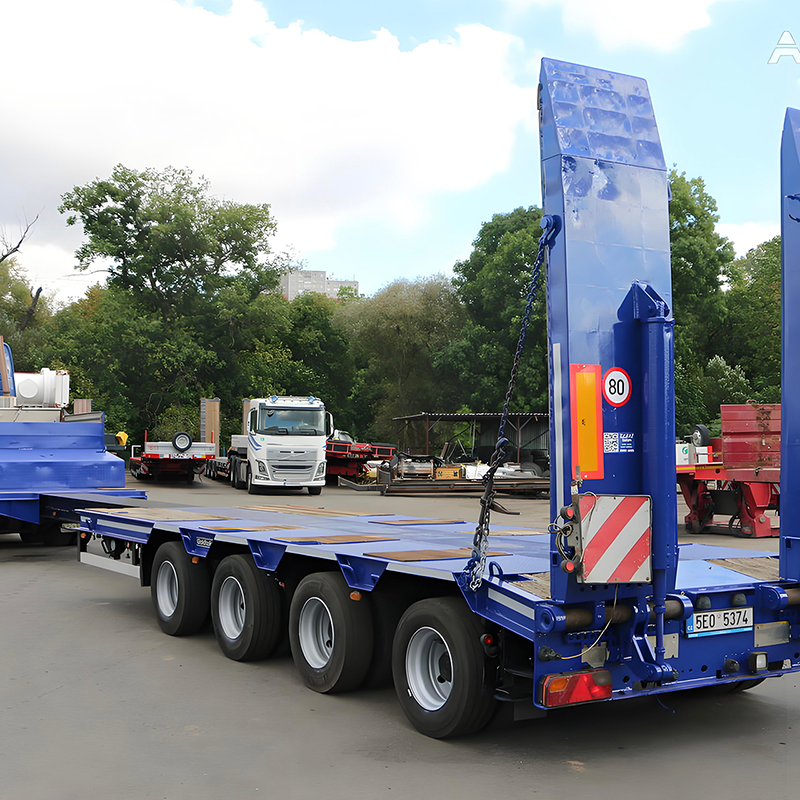

Extendable Lowbed Semi Trailer is a powerful and versatile transportation solution for various heavy-duty projects. This extendable trailer is commonly used in the construction and manufacturing industry,also used for the transportation of large construction equipment such as cranes, bulldozers, and excavators, as well as logistics and transportation companies.
The structure of Extendable Low bed Trailer
Structures including main frame, suspension system, axles, tires, and hydraulic extension system and so on.
Chassis material adopt High-strength steel, often alloyed, to support heavy loads while resisting deformation.
Used to sections slide out to increase the length of the semi trailer.
Hydraulic Systems: For adjusting deck height, extending the chassis, and operating ramps.
Technical Specification
Axles | 3/4 Axles*13Ton,FUWA/BPW or Customization |
Loading Capacity | 30-80 Tons |
Extendable Lowbed Trailer Size | 14000x2550x1750mm |
Main Bream | Height 500mm T700 High Strength Steel |
Chassis | Upper 20mm, Lower 20mm. Mid Web 12mm |
Extend | 12.5m to 24m Customization |
Braking System | Air Dual braking system,with relay valve |
Suspension | Leaf Spring Suspension / Air Suspension |
Landing gear | 28 Tons Two Speed,JOST/Other Brand |
Extendable Lowboy Semi Trailer Features
The hydraulic extension system makes it possible to carry larger and heavier equipment.
Robust structure and high loading capacity make it ideal for transporting heavy equipment safely and securely.
Main beam is constructed from high-strength Q345B steel plate, which provides outstanding bearing capacity and stability.
Durable Ramp is made from heavy-duty pressure-resistant steel plate, which is resistant to deformation and breakage.
