A Hydraulic Gooseneck Lowbed Semi Trailer is a specialized transport solution designed for heavy-duty hauling of construction equipment, industrial machinery, and other high-weight, high-profile loads. Its defining characteristic is a hydraulically powered gooseneck section. This hydraulic system allows the entire gooseneck to be raised or lowered relative to the main deck. Lowering the gooseneck significantly reduces the deck incline angle during loading and unloading, creating a much gentler slope for equipment to traverse. This design enhances safety and ease of operation compared to fixed gooseneck trailers, especially for tracked vehicles or machinery with low ground clearance.
Hydraulic Gooseneck: A robust hydraulic cylinder system integrated into the gooseneck structure allows for controlled lowering and raising, minimizing the ramp angle.
Low Loading Angle: The lowered gooseneck position creates a significantly reduced incline, facilitating safer and easier loading/unloading of sensitive or low-clearance equipment.
Low Deck Height: Maintains a low center of gravity when loaded, enhancing stability during transit.
Heavy-Duty Construction: Fabricated from high-tensile steel throughout the chassis, gooseneck, and deck to withstand extreme payloads.
Beavertail Section: Often incorporates a flip-up or fixed beavertail to further reduce the transition angle at the rear.
Multi-Axle Groups: Equipped with tandem, triple, or more axles featuring heavy-duty air or mechanical suspension systems for superior weight distribution.
Hydraulic Landing Gear: Reliable hydraulic landing legs provide stability during uncoupled operations.
Axles | 3/4 Axles*13Ton,FUWA/BPW or Customization |
Loading Capacity | 30-80 Tons |

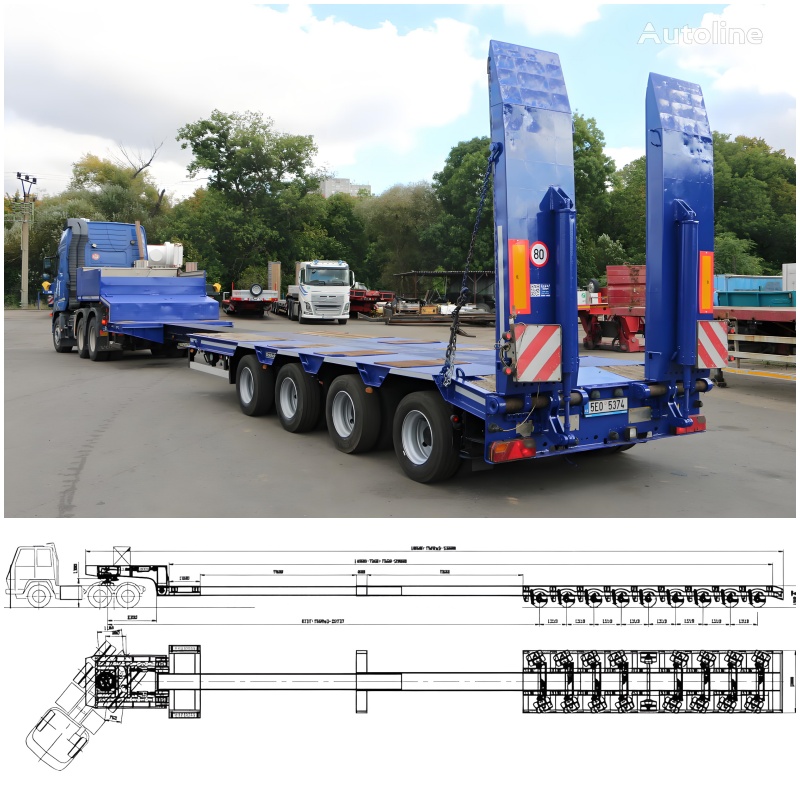

Extendable Lowbed Trailer Size | 14000x2550x1750mm |
Main Bream | Height 500mm T700 High Strength Steel |
Chassis | Upper 20mm, Lower 20mm. Mid Web 12mm |
Rear Loading Ramps | 2 Nos, 720mm Width, Spring Loaded & Manually Operated With Safety Chain |
Floor | The First and Second Floor Runway Is Paved With Anti-Skid Plate |
Extend | 12.5m to 24m Customization |
Braking System | Air Dual braking system,with relay valve |
Suspension | Leaf Spring Suspension / Air Suspension |
Landing gear | 28 Tons Two Speed,JOST/Other Brand |
Our Hydraulic Gooseneck Lowbeds are backed by comprehensive service solutions. This includes operator training programs focused on safe hydraulic gooseneck operation and load securement, a readily available supply of hydraulic system components (cylinders, hoses, pumps), structural parts, and suspension spares. Technical support is available for troubleshooting, and maintenance schedules are provided to ensure optimal performance and longevity.
