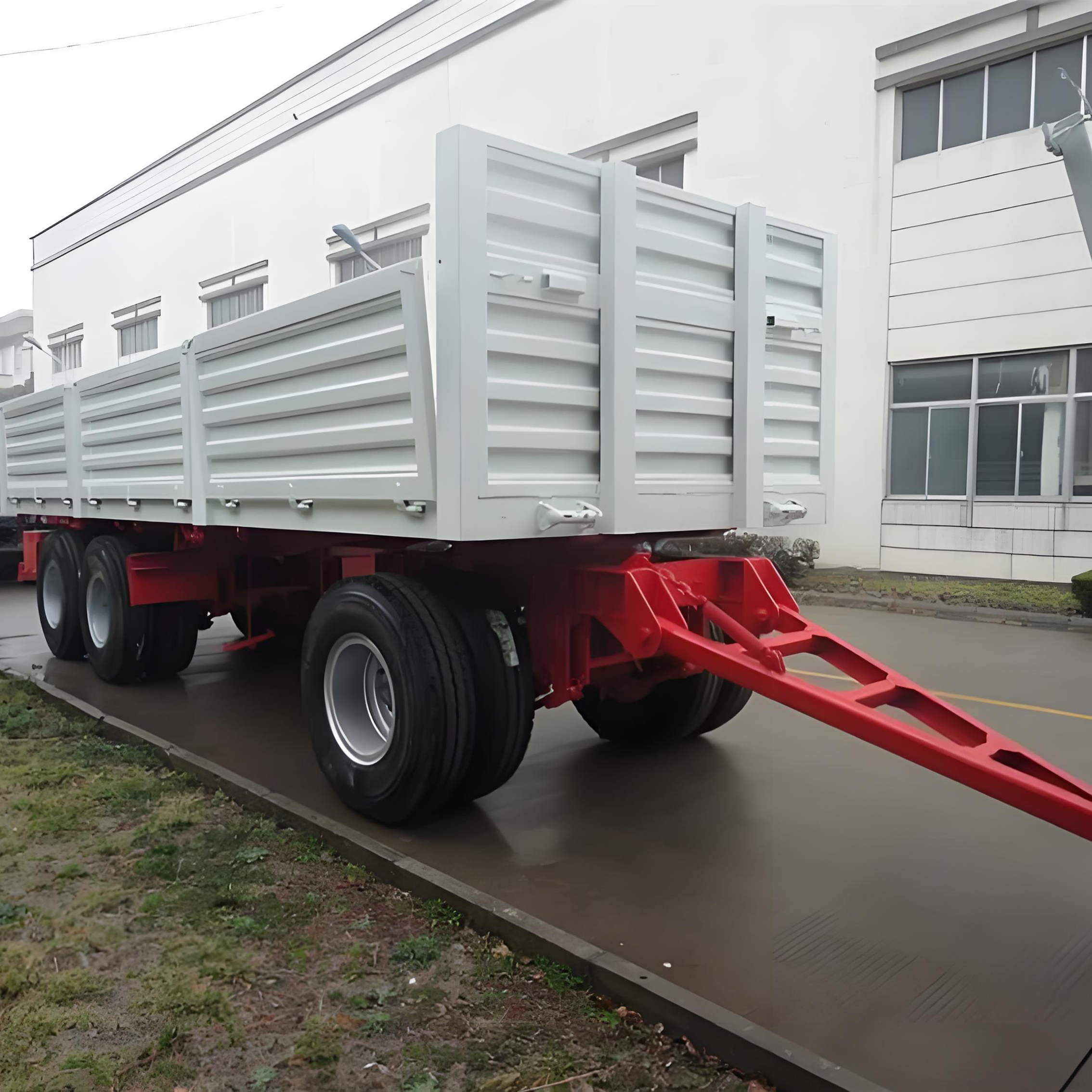

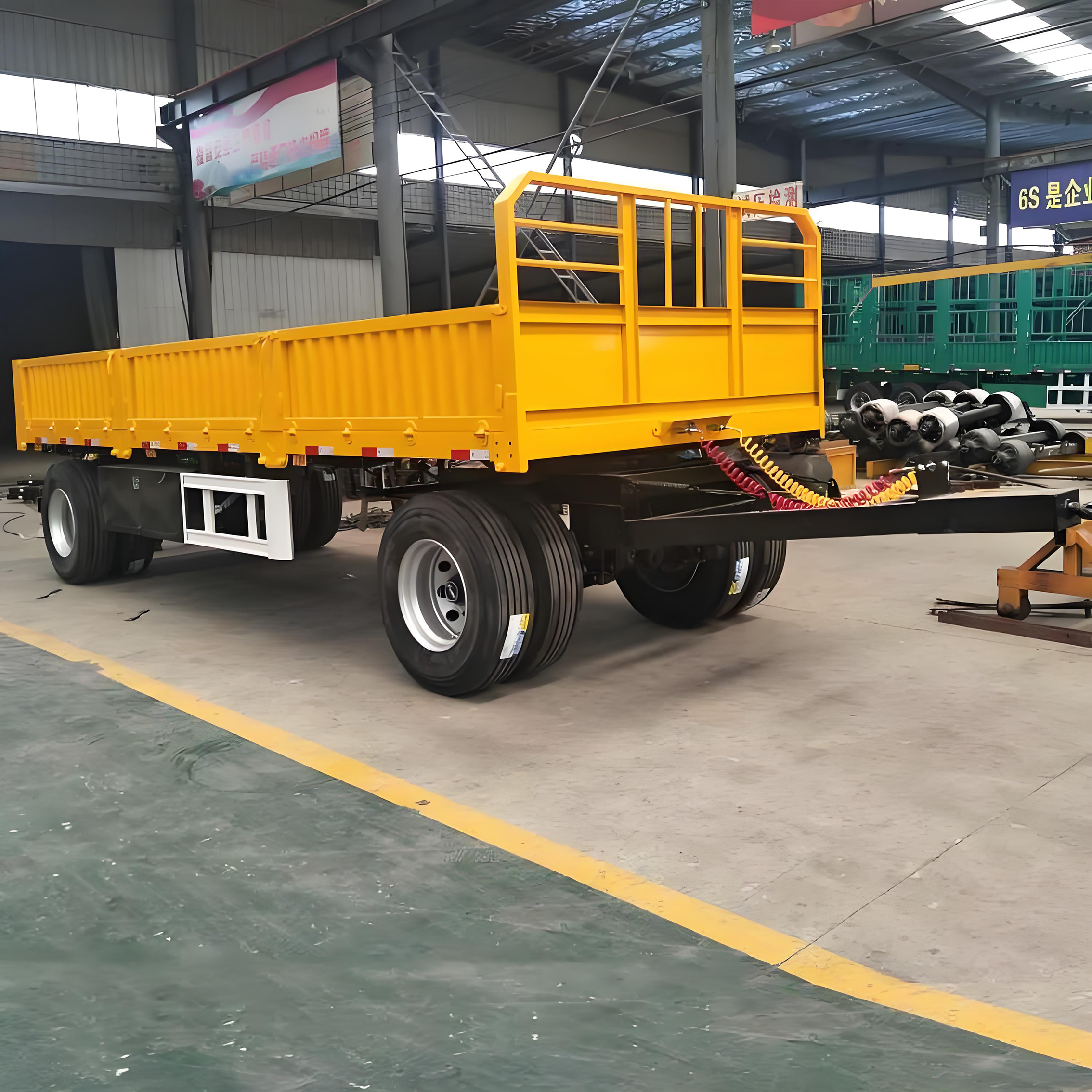

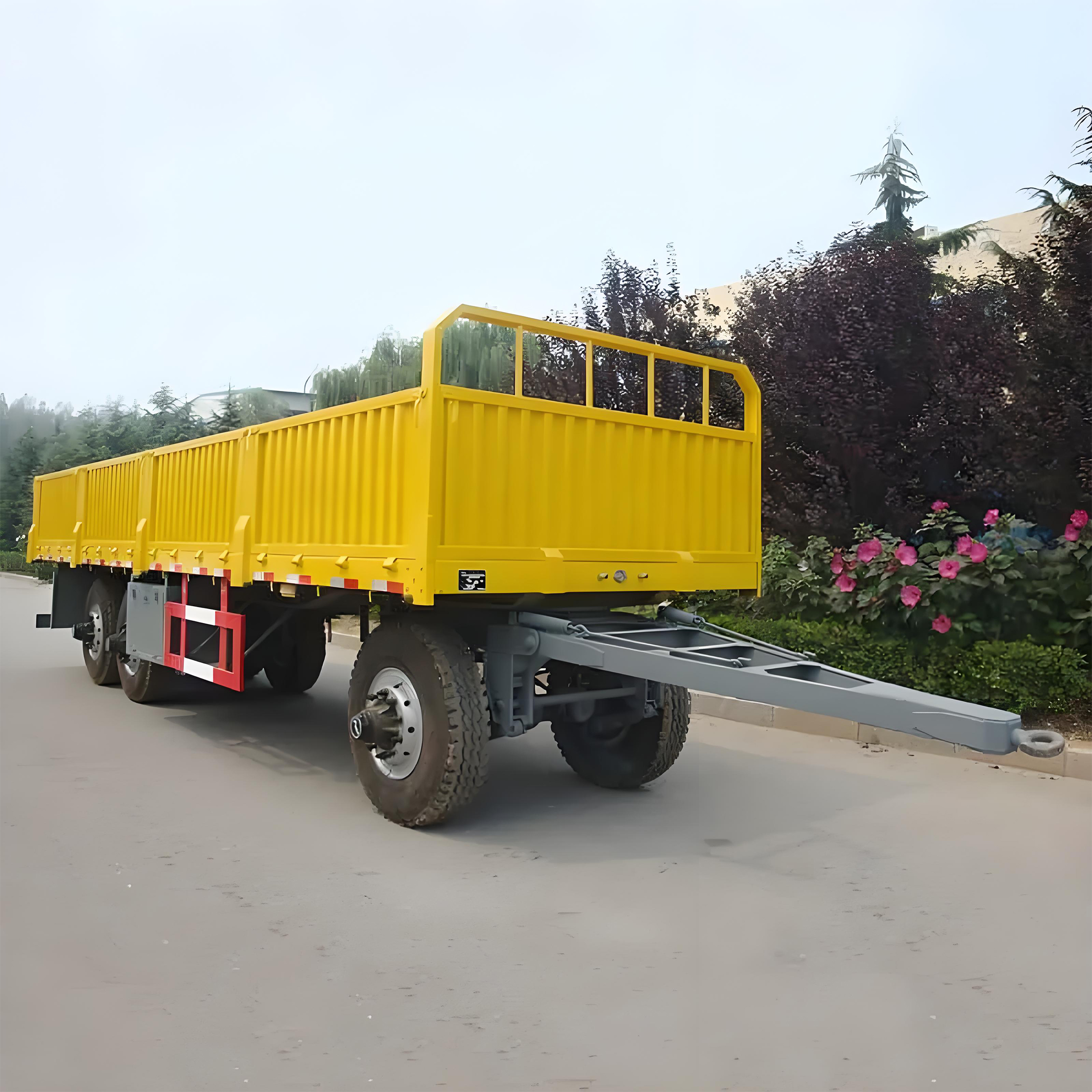

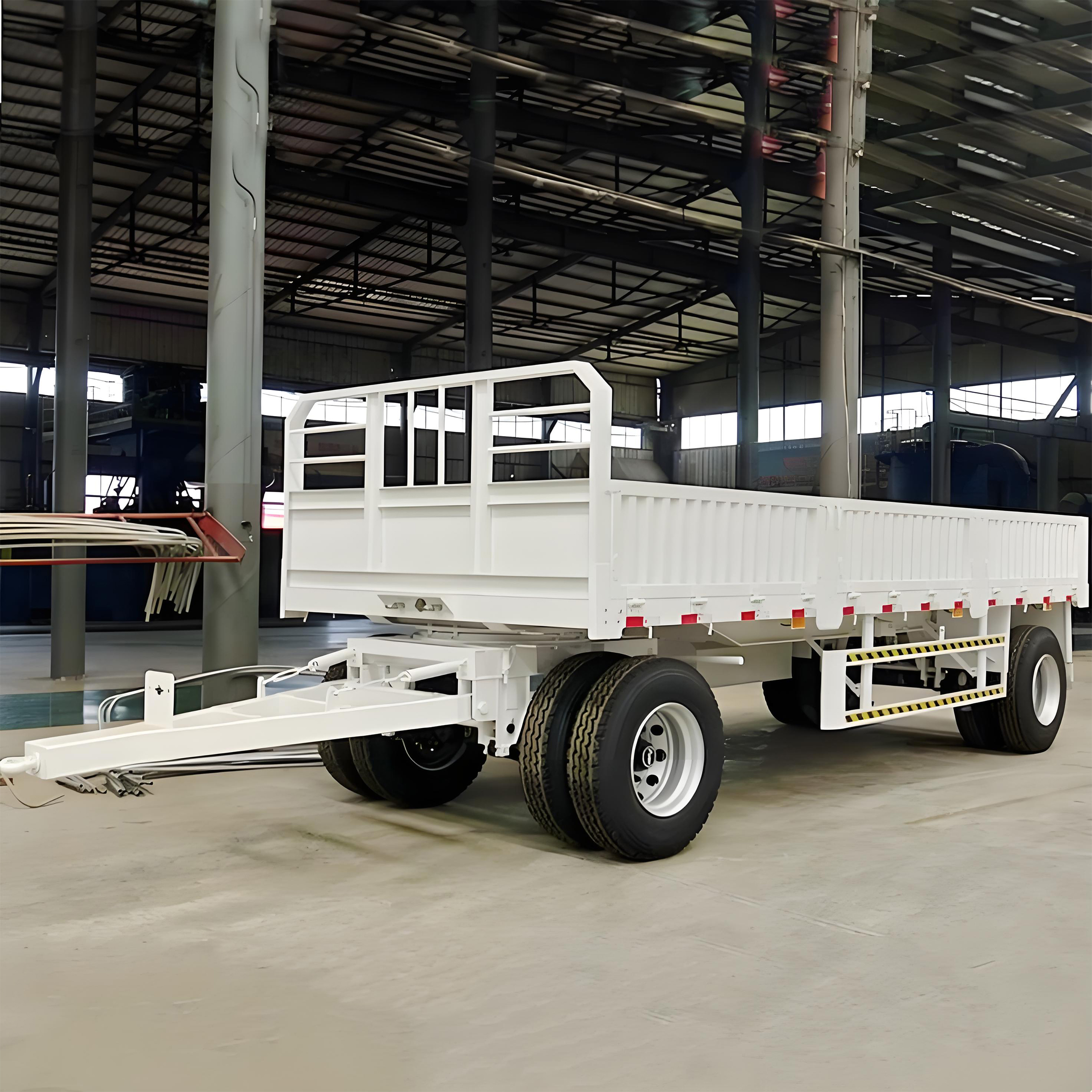

Sidewall Drawbar Dropside Full Trailer
Side wall drawbar trailer is a type of full trailer designed with strength sidewalls extending upward from the trailer's flatbed. These walls provide enclosure to secure the cargo, offering additional support and protection compared to a standard flatbed trailer. Dropside trailers are commonly used for transporting goods that require containment but not a fully enclosed environment, such as palletized loads, building materials, or agricultural products.
1. Drawbar full Trailer connects to a towing vehicle using a drawbar, which allows for easier handling and maneuverability.
2. Easy to maintain and has a long service life.
3. Use Mechanical suspension with good reliability and easy maintenance.
Max Payload | 30-60Tons |
Axles | 3 Axles*13/16Ton,FUWA/BPW or Customization |
Size | 7600*2550*2500mm (Customized) |
Material | Q345B,Beam Height:500mm,Upper Plate:14mm ,Bottom Plate:16mm,Middle:8mm |
Bottom plate thickness | 3mm diamond plate |
Sidewall Thickness | 2mm Q235 steel (Customizable) |
Side wall height | 600mm (Customizable) |
Braking System | Air Dual braking system,with relay valve |
Suspension | Mechanical suspension |
1. full trailer beam design the weight of the load is evenly distributed to prevent damage or instability.
2. Braking system are designed to slow down or stop the trailer when necessary.
3.Suspension system is designed to be robust, durable, and capable of handling a wide range of conditions.
