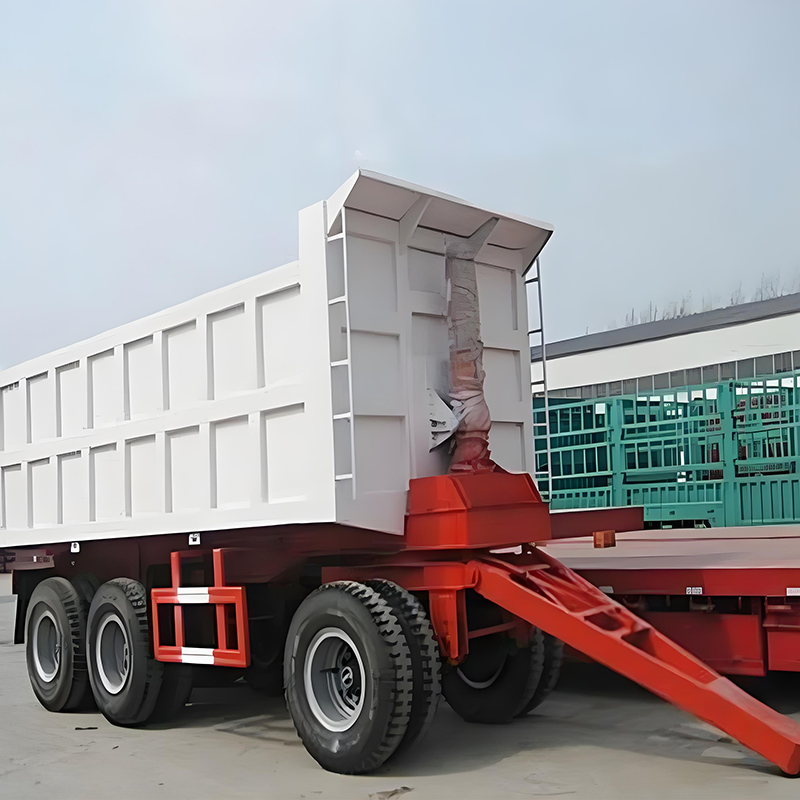

Dump Drawbar Full Trailer is a type of full trailer designed to transporting bulk materials like sand, gravel, or demolition waste, gravel, sand, or construction debris, and has the ability to dump its load at the destination.A Drawbar dump trailer is specifically designed to handle heavy loads and is equipped with mechanisms to tilt or dump its contents for easy unloading.
The Structure of Drawbar Trailer
The tipper drawbar trailer is equipped with a hydraulic lift system that allows the bed to tilt, facilitating the unloading of materials.
Drawbar Trailer connects to a towing vehicle using a drawbar, which allows for easier handling and maneuverability.
The tipper full trailer is typically built with a strong frame and a robust bed to support heavy loads.
Dump drawbar trailers come in various sizes and weight capacities, making them suitable for different types of hauling jobs.
Technical Specification
Semi Trailer Type | 3 axles Dump Drawbar full trailer |
Bucket capacity | 20-50 cubic meters |
Axles | 3 Axles*13/16Ton,FUWA/BPW or Customization |
Lifting system | Hydraulic Lifting Cylinder |
Dump semi trailer size | 7600*2550*2200mm (Customized) |
Dump Box | T700 / Q345B double plate |
Material | Q345B,Beam Height:500mm,Upper Plate:14mm ,Bottom Plate:16mm,Middle:8mm |
Bottom plate thickness | 2mm zinc-rion alloy plate or 3mm plain plate (Customizable) |
Sidewall Thickness | 4mm(Customizable) |
Braking System | Air Dual braking system,with relay valve |
Suspension | Heavy duty mechanical suspension / Air bag / Bogies |
Landing gear | 28 Tons Two Speed,JOST/Other Brand |
Tire | 12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/Other |
Tipper Dump Drawbar Trailer Features
Dump full trailer body is built to withstand heavy loads, resist wear, and enable efficient unloading.
Tipper full trailer use High-strength, abrasion-resistant steel,more durable and suited for rugged use.
Tipper drawbar trailer optional abrasion-resistant steel linings are used to protect the bed and reduce material sticking.
Drawbar trailer suspension system is designed to be robust, durable, and capable of handling a wide range of conditions.
Advanced Manufacturing: The use of advanced processing equipment and precise proportioning during assembly ensures stable performance. This precision manufacturing also simplifies maintenance, reducing downtime and operational costs.
Robotic Welding Technology: The drawbar trailer frame benefits from robot automatic welding, resulting in consistent, strong, and aesthetically pleasing weld seams. This technology enhances the durability and reliability of the trailer, even under demanding conditions.
Comprehensive Testing: Each full trailer undergoes extensive stress and compression performance testing before delivery. This rigorous testing ensures that the trailer is in optimal working condition, providing peace of mind and reliability for the user
